1/4" Insulon Vacuum Jacketed Hose, Low Pressure

Description

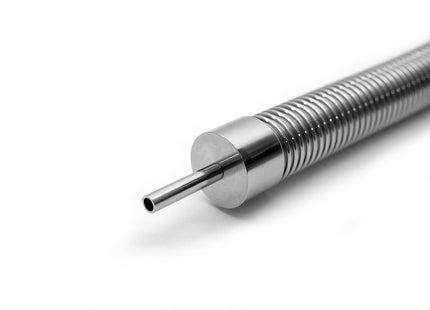

1/4" Insulon Vacuum Jacketed Hose, Low Pressure



Due to vendor policies, any of these Insulon Vacuum Jacketed Hoses are final sale, non-returnable, and non-refundable.



Technical Specifications:

Hose Size 1/4" ID
DN (ISO 10380) 6
Product Category LP (Low Pressure)
Inner Hose ID 0.236”
Tube Stub OD 0.250”
Tube Stub Thickness 0.035”
Outer Hose OD 1.05”

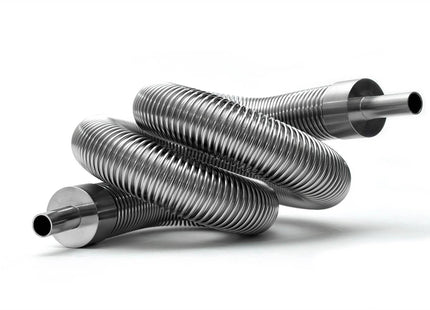

Static Bend Radius 2.65”
Dynamic Bend Radius 8.86”

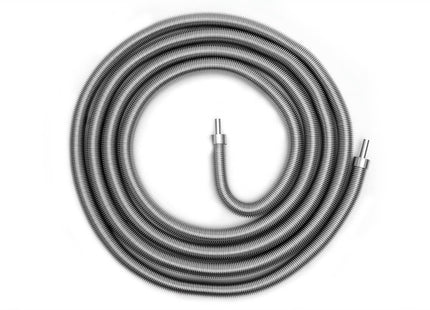

Lengths 2 – 20’
Operating Temperature -270°C to 900°C (-454°F to 1652°F)
Material 316L stainless steel







Maximum Allowable Working Pressure (MAWP) by Temperature:

Product Category Hose Size Max Temperature (C) Max Temperature (F) MAWP (PSI)
Low Pressure (LP) 1/4" ID 21 70 72
Low Pressure (LP) 1/4" ID 66 150 67
Low Pressure (LP) 1/4" ID 93 200 64
Low Pressure (LP) 1/4" ID 121 250 62
Low Pressure (LP) 1/4" ID 149 300 60
Low Pressure (LP) 1/4" ID 166 330 58
Low Pressure (LP) 1/4" ID 204 400 56
Low Pressure (LP) 1/4" ID 232 450 56
Low Pressure (LP) 1/4" ID 260 500 55
Low Pressure (LP) 1/4" ID 316 600 55
Low Pressure (LP) 1/4" ID 371 700 55
Low Pressure (LP) 1/4" ID 427 800 54
Low Pressure (LP) 1/4" ID 482 900 53
Low Pressure (LP) 1/4" ID 538 1000 53
Low Pressure (LP) 1/4" ID 593 1100 48
Low Pressure (LP) 1/4" ID 649 1200 44
Low Pressure (LP) 1/4" ID 704 1300 40
Low Pressure (LP) 1/4" ID 760 1400 35
Low Pressure (LP) 1/4" ID 816 1500 28
Low Pressure (LP) 1/4" ID 899 1650 18

1/4" Insulon Vacuum Jacketed Hose, Low Pressure

Product form

SKU: 11000

$339.98

You will earn 339.98 points for this purchase.
  • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
