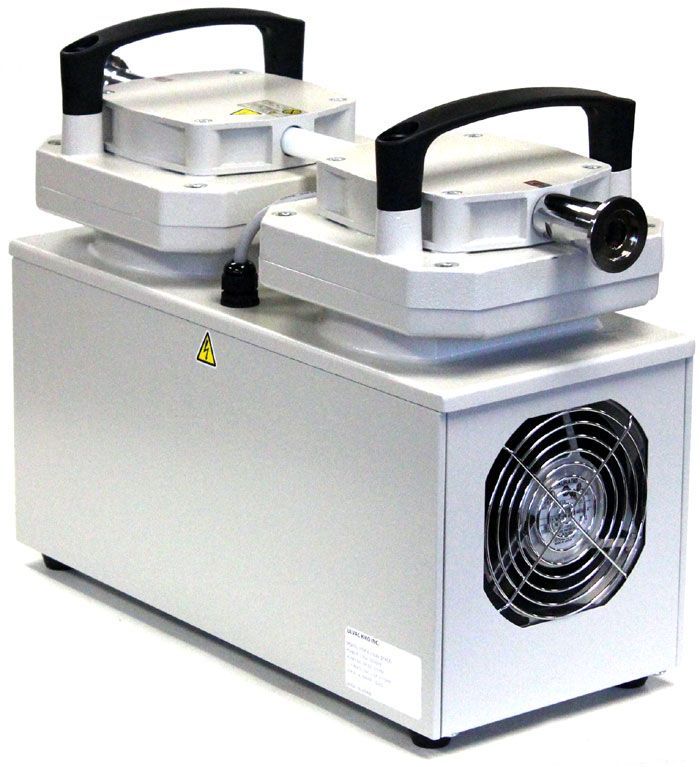

Ai exclusive, compact, lightweight, manufactured and imported directly from Japan, ULVAC UDP-6 is a high capacity full chemical-resistant 2-head pump that creates deep vacuum by reciprocate movement of rubber diaphragms. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.
Applications
TUV certified to UL and CSA standards
Moisture & solvent evaporation
Vacuum chucks, wafer and tip handling devices
Vacuum tweezers, medical appliances
Printing equipment
Automatic packing machines
Optical appliances
Semiconductor industry
Specifications
Model
ULVAC UDP-6 (DA-170DA/B)
Electrical requirements
110V 50/60Hz or 220V 50/60Hz single phase 400 watts, 5.6 amp rated current
Pumping rate
6 cfm
Ultimate vacuum level
6 torr
Inlet/Outlet
KF25 flange
Adjustable vac./gas ballast
No
Unit/shipping dimensions (LxWxH)
16 x 7 x 13" / 18 x 11 x 14.5"
Noise level
68 dBA at Atmosphere pressure 62 dBA at ultimate pressure
Unit/shipping weight
58 Lb / 63 Lb
Working environment
32°F to 104°F (0°C to 40°C)
Compliance
TUV certified to UL and CSA standards
