SHEL LAB SMO1 Forced Air Convection Oven 1.4CF

Description

SHEL LAB SMO1 Forced Air Convection Oven 39.4L

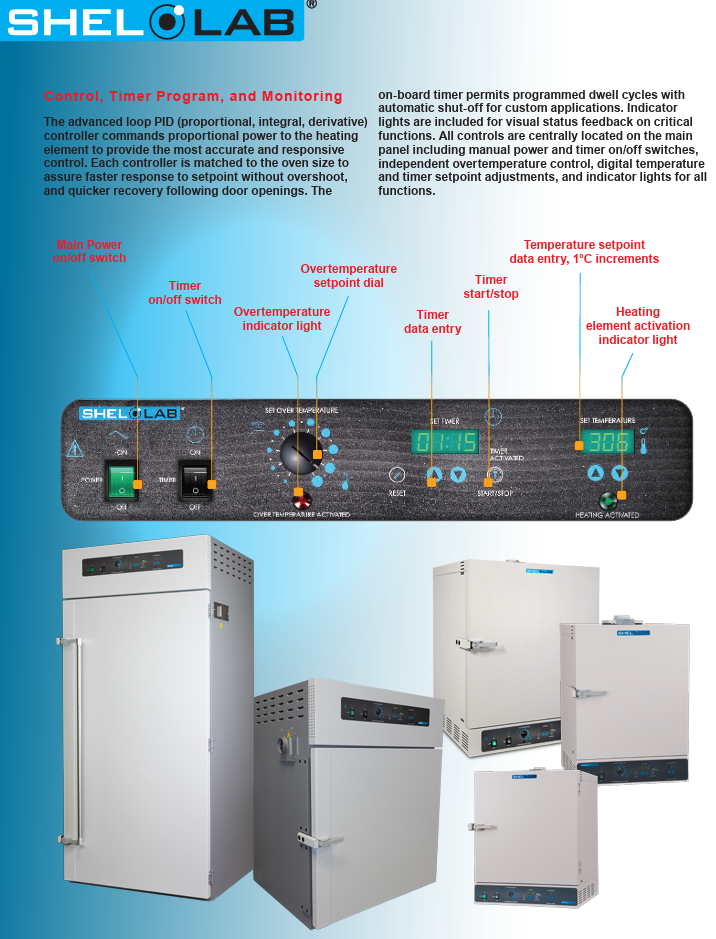

The SMO1 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.

These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.

This unit is equipped with a stainless-steel interior for long-life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep work spaces cool.

The SMO1's forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the SHEL LAB brand.

Features of this oven include:
  • Embedded Microprocessor Control with Countdown Timer
  • Horizontal Forced Airflow
  • 1.75in (45 mm) Access Port
  • UL/CSA Approved
  • CE Approval
  • DIN 12880 Compliant
  • 24 Month Limited Warranty
  • Includes 2 Shelves. Holds 6 Total
  • Temperature Range +20°C to 306°C
  • Temperature Uniformity ± 5.4°C at 306°C

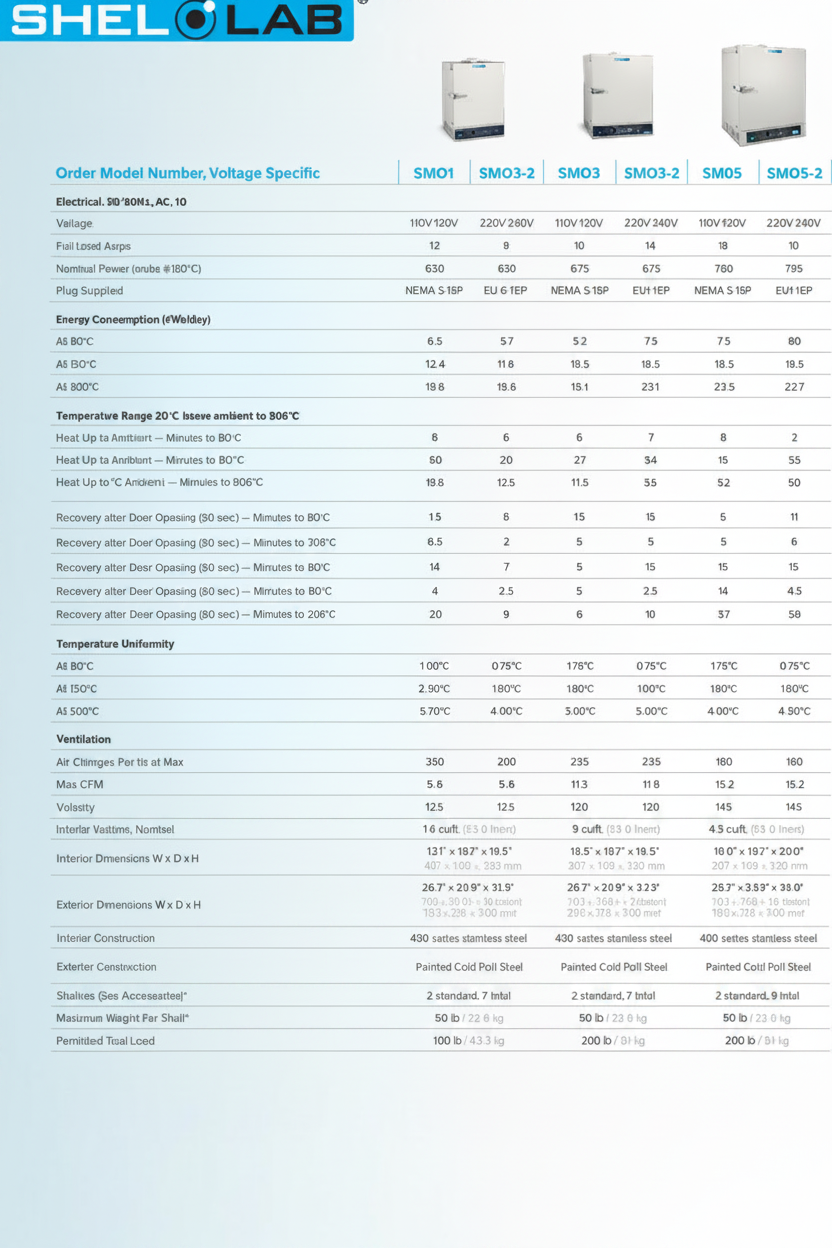

Options:
SMO1: OVEN, FORCED AIR, 1.4 CU FT, 115V
SMO1-2: OVEN, FORCED AIR, 1.4 CU FT, 230V
Temperature Range Ambient +20°C to 306°C
Temperature Uniformity ± 0.5°C at 80°C ± 1.2°C at 150°C ± 5.4°C at 306°C
Temperature Stability ± 0.3°C at 150°C
Heat Up Times (From Ambient 20°C) 80°C: 5.5 Minutes 150°C: 15 Minutes 306°C: 96 Minutes
Volume 39.4L (1.4 cu. ft.)
Shelves 2
Max. Shelf Capacity 6
Max. Shelf Load 50.0 lb. (22.6 kg)
Access Port 1.75 in. (45 mm)
Interior Dimensions (W x D x H) 12.1 x 13.7 x 14.5 in. (30.7 x 34.9 x 36.8 cm)
Exterior Dimensions (W x D x H) 22.7 x 23.5 x 31.5 in. (57.7 x 59.6 x 80.0 cm)
Weight 126.5 lb. (57.4 kg)
Electrical Requirements 110-120V AC, 50/60Hz, 12.0A

SHEL LAB SMO1 Forced Air Convection Oven 1.4CF

Product form

SKU: SLF123

$4,531.84

    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

    Description

    SHEL LAB SMO1 Forced Air Convection Oven 39.4L

    The SMO1 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response.

    These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.

    This unit is equipped with a stainless-steel interior for long-life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep work spaces cool.

    The SMO1's forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the SHEL LAB brand.

    Features of this oven include:
    • Embedded Microprocessor Control with Countdown Timer
    • Horizontal Forced Airflow
    • 1.75in (45 mm) Access Port
    • UL/CSA Approved
    • CE Approval
    • DIN 12880 Compliant
    • 24 Month Limited Warranty
    • Includes 2 Shelves. Holds 6 Total
    • Temperature Range +20°C to 306°C
    • Temperature Uniformity ± 5.4°C at 306°C
    Options:
    SMO1: OVEN, FORCED AIR, 1.4 CU FT, 115V
    SMO1-2: OVEN, FORCED AIR, 1.4 CU FT, 230V
    Temperature Range Ambient +20°C to 306°C
    Temperature Uniformity ± 0.5°C at 80°C ± 1.2°C at 150°C ± 5.4°C at 306°C
    Temperature Stability ± 0.3°C at 150°C
    Heat Up Times (From Ambient 20°C) 80°C: 5.5 Minutes 150°C: 15 Minutes 306°C: 96 Minutes
    Volume 39.4L (1.4 cu. ft.)
    Shelves 2
    Max. Shelf Capacity 6
    Max. Shelf Load 50.0 lb. (22.6 kg)
    Access Port 1.75 in. (45 mm)
    Interior Dimensions (W x D x H) 12.1 x 13.7 x 14.5 in. (30.7 x 34.9 x 36.8 cm)
    Exterior Dimensions (W x D x H) 22.7 x 23.5 x 31.5 in. (57.7 x 59.6 x 80.0 cm)
    Weight 126.5 lb. (57.4 kg)
    Electrical Requirements 110-120V AC, 50/60Hz, 12.0A
