Description
SHEL LAB SMO28-2 Large Capacity Forced Air Convection Oven 781L
The SHEL LAB Model SMO28-2 is the largest general-purpose oven on the market. The independent overtemperature safety feature is user adjustable and provides added safety.
The turbo blower-assisted forced airflow design coupled with a heavy-duty blower motor offers excellent temperature uniformity and fast recovery times. Airflow is directed evenly across all shelves and samples to ensure consistent drying, curing, and baking results.
The SMO large capacity units are perfect for high volume sample and drying applications, including production processes. These units are especially ideal for glassware drying.
These SHEL LAB ovens Feature:
- Three-inch Adjustable Exhaust Port
- Stainless Steel Shelves
- Independent Overtemperature Safety
- High-Temperature Silicone Door Seal
- No Exposed Heating Elements
- Added docking collars to intake and exhaust ports to allow ducting to be attached for venting exhaust out of the workspace
- Shelf standards moved to the sides of the unit for easier shelf installation
- Wrap Around Insulation
- Durable Powder Coat Paint Exterior Finish
- Digital Timer
- 24 Month Limited Warranty
- Includes 6 Shelves. Holds 16 Total
- Temperature Range +15°C to 260°C
- Temperature Uniformity ± 7C at 260°C

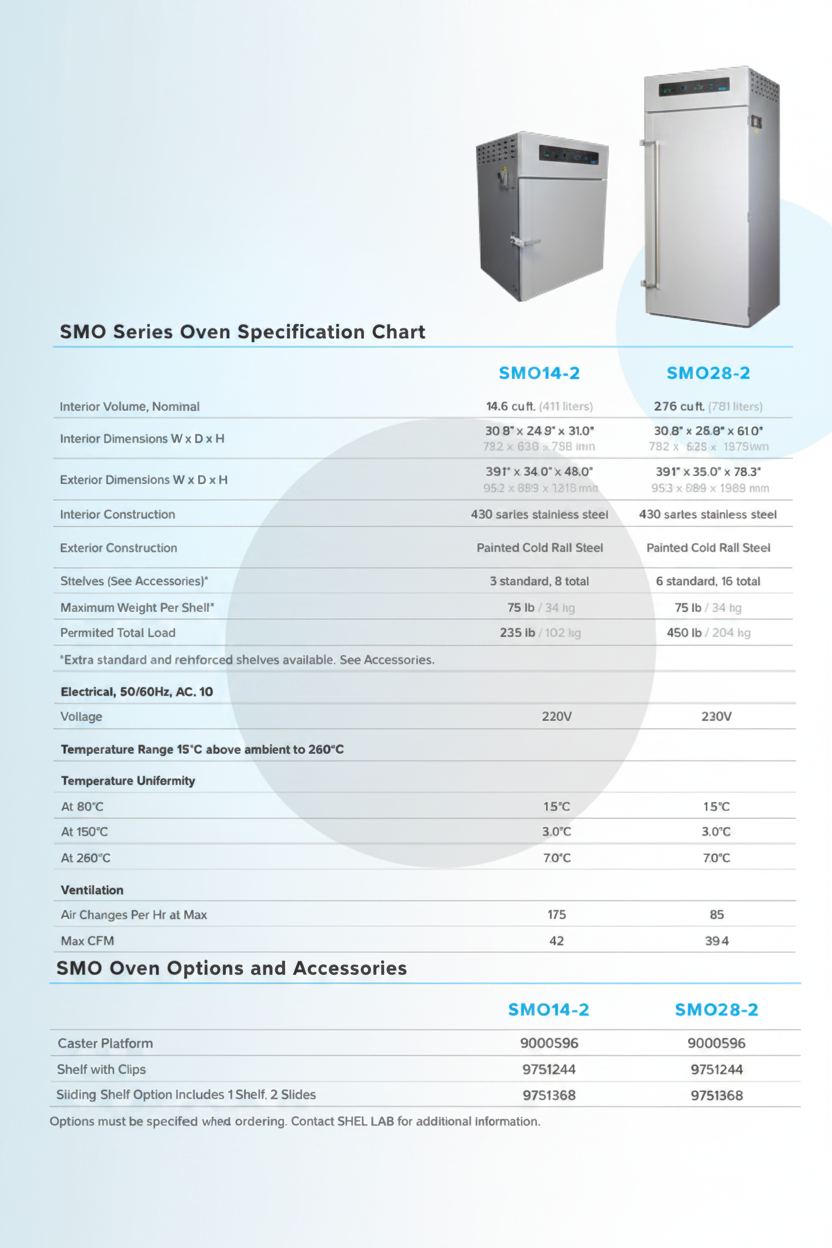

| Temperature Range |
Ambient +15°C to 260°C |
| Temperature Uniformity |
± 1.5°C at 80°C ± 3°C at 150°C ± 7°C at 260°C |
| Temperature Stability |
± 0.4°C at 150°C |
| Heat Up Times (From Ambient 20°C) |
80°C: 12 Minutes 150°C: 25 Minutes 260°C: 60 Minutes |
| Volume |
781.0L (27.6 cu. ft.) |
| Shelves |
6 |
| Max. Shelf Load |
75.0 lb. (34.0 kg) |
| Access Port |
1.75 in. (45 mm) |
| Interior Dimensions (W x D x H) |
30.8 x 25.0 x 61.0 in. (78.2 x 63.5 x 157.5 cm) |
| Exterior Dimensions (W x D x H) |
39.1 x 35.0 x 78.3 in. (99.4 x 88.9 x 198.9 cm) |
| Weight |
390.0 lb. (177.3 kg) |
| Electrical Requirements |
230V AC, 50/60Hz, 20.0A |
