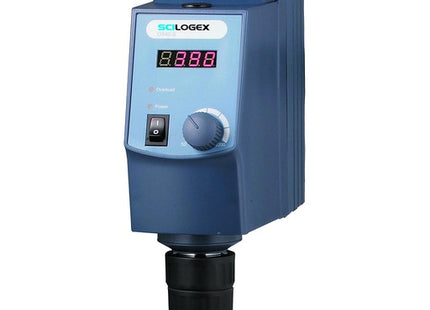

SCILOGEX SCI40-S (40L) LED Digital Overhead Stirrer 50-2200rpm
SCILOGEX SCI40-S Overhead LED Digital Stirrer, 40L Capacity, 100-220V 50/60Hz, US Plug (including steel cross-stirrer Part# 1890007, stand sold separately)
Product Features
- A wide range of speed from 50 to 2200rpm
- Brushless DC motor for long life and maintenance free
- Analog speed controls displayed on the LED display for monitoring actual speed
- High torque for viscous medium stirring
- Over torque protection automatically stops the motor
- Safety circuits allow for safe stop function in anti-stall or overload condition
- A through-shaft design allows for easy adjustment of the impeller position
- In the event of power loss, the stirrer will resume stirring at the preset speed when the power returns
- Pass through stirrer rods accepted
- cTUVus approved for UL and CSA
- 2 YEAR WARRANTY
Product Specifications
| Maximum stirring capacity |
40L |
| Maximum torque |
60Ncm |
| Viscosity maximum |
50000mPas |
| Speed range |
50-2200rpm |
| Speed display accuracy |
± 50rpm |
| Speed display resolution |
± 10rpm |
| Chuck diameter range |
0.5-10mm |
| Dimensions |
3.3W x 8.7H x 7.3D in (83W x.220H x 186D mm) |
| Motor rating input |
120W |
| Motor rating output |
100W |
| Weight |
5.5lbs |
| Motor type |
brushless DC motor |
| Voltage/Power |
100-220V, 50/60 Hz/ 130W |
| Speed/Torque display |
LED |
| Overload protection display |
LED lights |
| Protection class |
IP42 |
| Permissible ambient temperature and humidity |
5-40°C, 80%RH |
Additional Resources and Information
Downloadable PDFs
SCI40-S manual
SCILOGEX Overhead
Stirrers brochure
SCILOGEX Overhead
Stirrers Software
SCILOGEX SCI20/40-S LED Digital Overhead Stirrer.mp4 from SCILOGEX on Vimeo.
