Pro Series High Pressure Clamps
Description

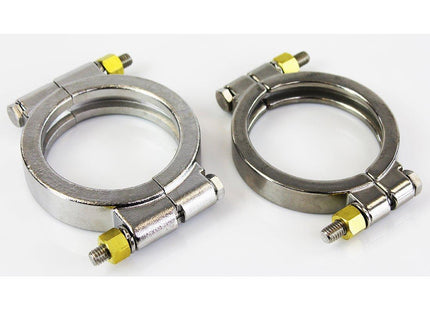

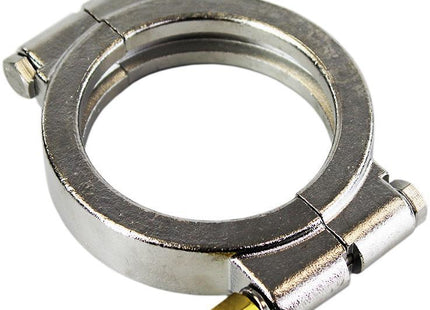

Pro Series High Pressure Clamps

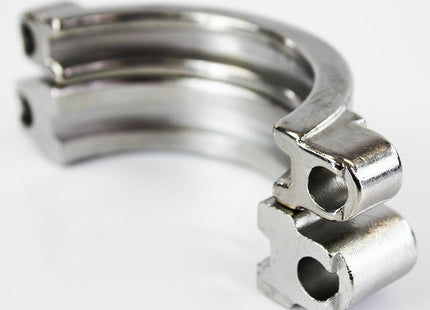

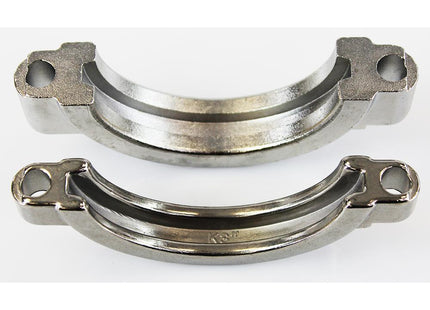

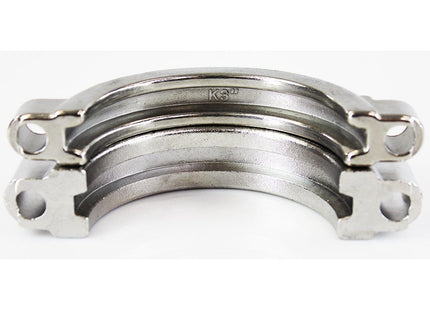

These are the Pro Series High Pressure Clamps for Heavy Duty Applications. These clamps are completely re-designed to be stronger and more industrial to last longer and stand up to higher pressure applications. The Internal flange of the clamp is much more precise offering better dispersion of pressure on the sealing face of the gasket which allows to the system to seal without having to overtighten the clamps.

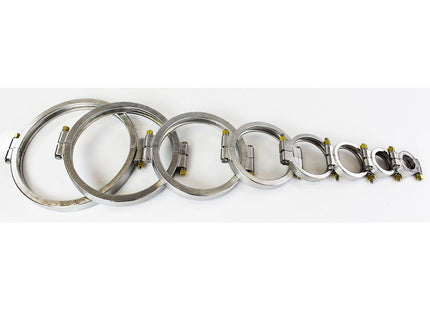

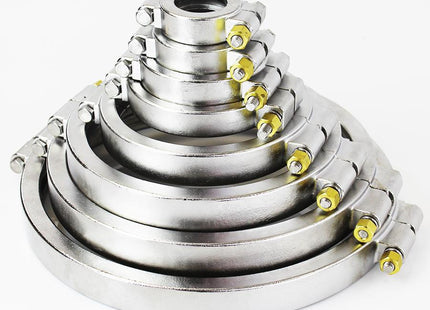

Sizes Available:
- 1.5" High Pressure Clamp
- 2" High Pressure Clamp
- 3" High Pressure Clamp
- 4" High Pressure Clamp
- 6" High Pressure Clamp
- 8" High Pressure Clamp
- 10" High Pressure Clamp
- 12" High Pressure Clamp
Specifications:
- Hinge Type: Bolted
- Material: 304 Stainless Steel
- Connection Type: Tri-Clamp
- Nut Size: 5/8" for All Clamp Sizes
| Sizes | Max Torque (Nm / Ft Lbf / In Lbf) |
Maximum Pressure @70F | Maximum Pressure @250F |
| 1.5" | 12-14 / 8.85-10 / 106-124 | 2500 | 1500 |
| 2" | 12-14 / 8.85-10 / 106-124 | 2500 | 1200 |
| 3" | 12-14 / 8.85-10 / 106-124 | 2500 | 1200 |
| 4" | 12-14 / 8.85-10 / 106-124 | 1800 | 1000 |
| 6" | 12-14 / 8.85-10 / 106-124 | 800 | 400 |
| 8" | 12-14 / 8.85-10 / 106-124 | 500 | 250 |
| 10" | 12-14 / 8.85-10 / 106-124 | 300 | 175 |
| 12" | 12-14 / 8.85-10 / 106-124 | 250 | 125 |
