| Description |

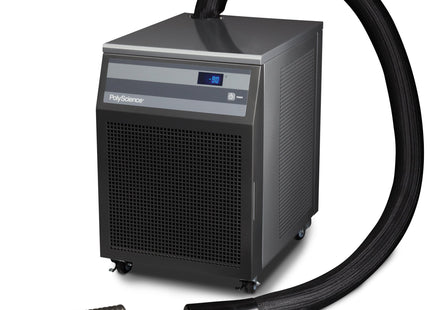

Immersion Probe-100, 3" Rigid Coil |
| Display |
Temperature |
| Working Temperature Range °C |
-100° to -60° |
| Working Temperature Range °F |
-148° to -76° |
| Working Temperature Range °C |
-100° to -60° |
| Temperature Control (°F) |
Fixed at -148° |
| Temperature Control (°C) |
Fixed at -100°C |
| Cleanable Air Filter |
Yes |
| Display |
Temperature |
| Maximum Ambient Temperature °F |
86° |
| Maximum Ambient Temperature °C |
30° |
| Overall Dimensions (L x W x H) (in) |
20.1 x 15 x 22.3 in |
| Overall Dimensions (L x W x H) (cm) |
51.1 x 38.1 x 56.6 cm |
| Refrigerant |
R404A & R508B |
| Immersion Probe Type |
Rigid Coil |
| Probe Diameter (inches) |
3 |
| Probe Diameter (cm) |
7.62 |
| Probe Length (inches) |
Coil: 9 / Exposed: 17 |
| Probe Length (cm) |
Coil: 22.9 / Exposed: 43.2 |
| Flexible Hose Diameter (inches) |
2.83 |
| Flexible Hose Diameter (cm) |
7.14 |
| Flexible Hose Length (feet) |
6 |
| Flexible Hose Length (m) |
1.83 |
| Shipping Weight (pounds) |
162.0 |
| Shipping Weight (kilograms) |
73.5 |
| Catalog Page Number |
114-115 |
| 60 Hz Only |
| Part Number |
P10N6A101B |
| Cooling Capacity @ -100°C (W) |
0 |
| Cooling Capacity @ -80°C (W) |
35 |
| Cooling Capacity @ -65°C (W) |
85 |
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/11.5 |
