| Description |

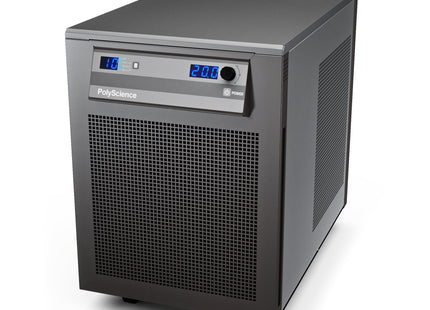

1.5 HP Chiller, Turbine Pump; Air-Cooled |
| Display |
LED |
| Connectivity |
Optional: RS232, RS485 |
| Working Temperature Range °C |
5° to 35° |
| Temperature Stability °C |
±0.5° |
| Temperature Calibration Capability |
1-point |
| Pump Type |
Turbine |
| Working Temperature Range °F |
41° to 95° |
| Working Temperature Range °C |
5° to 35° |
| Reservoir Capacity (gallons) |
3.5 |
| Reservoir Capacity (liters) |
13.25 |
| Reservoir/Tank Material |
Polyethylene |
| Reservoir Cover |
Screw-on Cap |
| Cleanable Air Filter |
Yes |
| Cleanable Fluid Filter |
Yes |
| Temperature Stability °F |
±0.9° |
| Temperature Stability °C |
±0.5° |
| Display |
LED |
| Display Resolution (Read) |
0.01 |
| Pump Type |
Turbine |
| Process Connections |
1/2" (F) NPT |
| Over-Temperature Protection / Failsafe Heater Control |
Yes |
| Reservoir Liquid Level Indicator |
Yes |
| Reservoir Drain |
Yes |
| Maximum Ambient Temperature °F |
95° |
| Maximum Ambient Temperature °C |
35° |
| Overall Dimensions (L x W x H) (inches) |
30.5 x 19 x 26 in |
| Overall Dimensions (L x W x H) (cm) |
78 x 48 x 66 cm |
| Compressor Size (HP) |
1.5 |
| Refrigerant |
R134a |
| Shipping Weight (pounds) |
340.0 |
| Shipping Weight (kilograms) |
154.0 |
| Catalog Page Number |
104 |
| 60 Hz Only |
| Part Number |
6860T56A270D |
| Maximum Pressure (psi) |
100.0 |
| Maximum Pressure (bar) |
6.90 |
| Maximum Pressure Flow Rate (gpm) |
11.00 |
| Maximum Pressure Flow Rate (l/min) |
41.6 |
| Cooling Capacity @ +10°C (W) |
4420 |
| Cooling Capacity @ 0°C (W) |
120 |
| Cooling Capacity @ +20°C (W) |
5200 |
| Cooling Capacity @ +30°C (W) |
5980 |
| Heater Wattage |
1000 |
| Electrical Requirements (VAC/Hz/Ph/A) |
230/60/1/23.1 |
| Regulatory Approvals |
TUV |
