| PPF Efficacy: |
2.85 at 240 VAC |

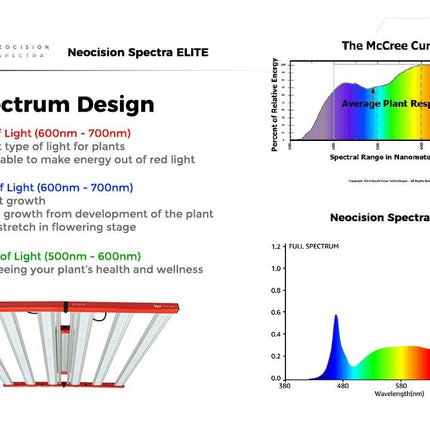

| Photon Flux (µmol/s) (400-700nm): |
1939 |
| Photon Flux Blue (µmol/s) (400-500nm): |
400 |
| Photon Flux Green (µmol/s) (500-600nm): |
666 |
| Photon Flux Red (µmol/s) (600-700nm): |
874 |
| Total Blue/Red - Energy Bands: |
1274 |
| % Blue: |
20.64% |
| % Green: |
34.34% |
| % Red: |
45.06% |
| POWER |
| Power Consumption: |
680W AC |
| Driver: |
Sosen |
| Power Factor: |
>0.95 |
| Surge Protection: |
6 KV |
| 208V: |
3.44A |
| 240V: |
2.98A |
| 277V3: |
2.58A |
| DIMENSIONS |

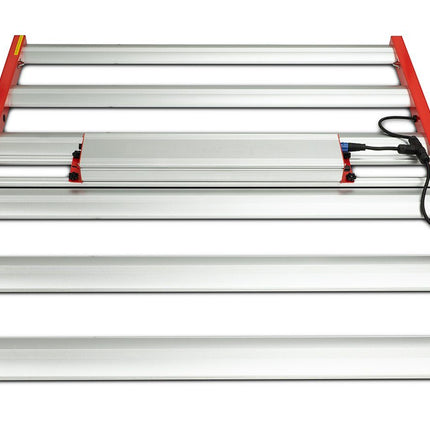

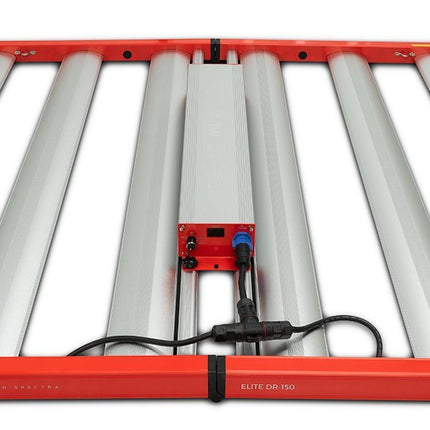

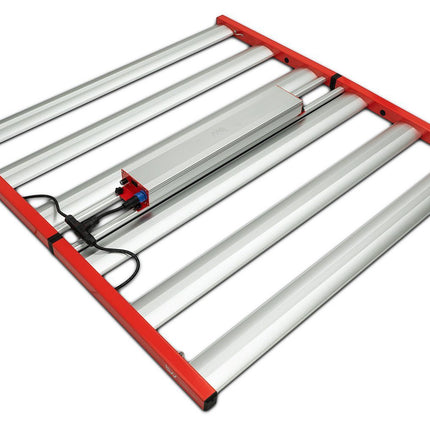

| Fixture Size (driver mounted on the fixture): |
(L) 43.9” x (W) 43.9” x (H) 4.1” |

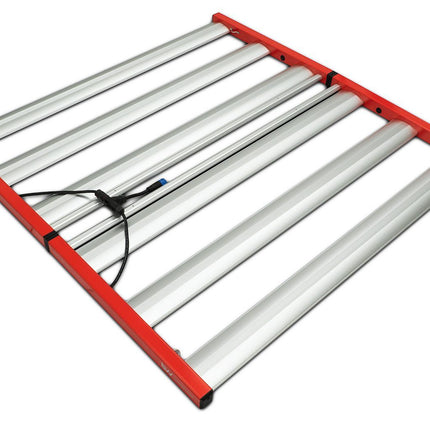

| Fixture Size (without driver): |
(L) 43.9” x (W) 43.9” x (H) 1.6” |

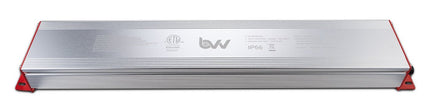

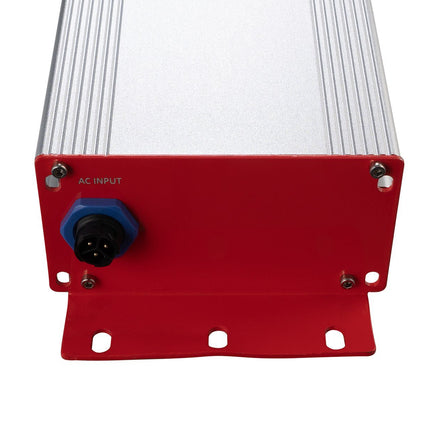

| Power Supply Dimension: |
(L)23” X (W) 6.5” X (H) 3” |
| Driver Net Weight: |
10.1 lb. |
| Fixture Net Weight: |
20.4 lb. |
| OTHER |
| Mounting Height |
>6” above canopy |
| Beam Angle |
120 Degree |
| Input Voltage |
200 - 277 VAC |

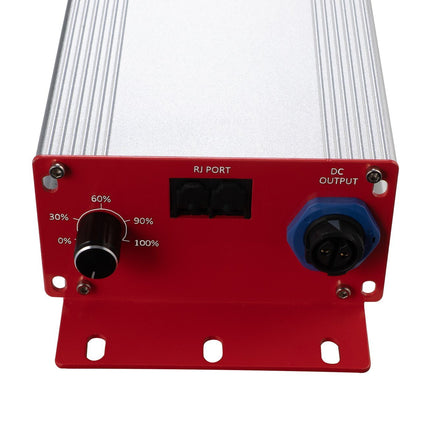

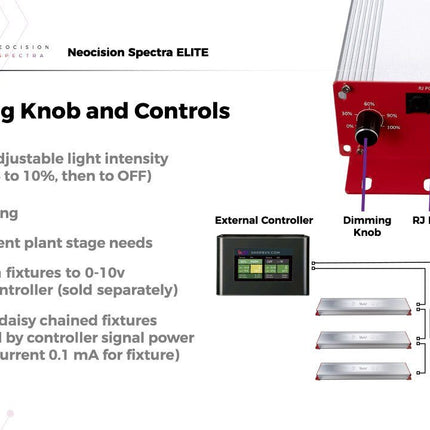

| Manual Dimming Knob |
Yes |
| Built In Control Ports |
Yes |
| Power Cord Length (Extensions available) |
AWG 18, 6 Foot |
Standard Plug
|
240 VAC - NEMA 6-15P |
| Substitute Plugs (Upon request at order) |
277 VAC, Pigtails |

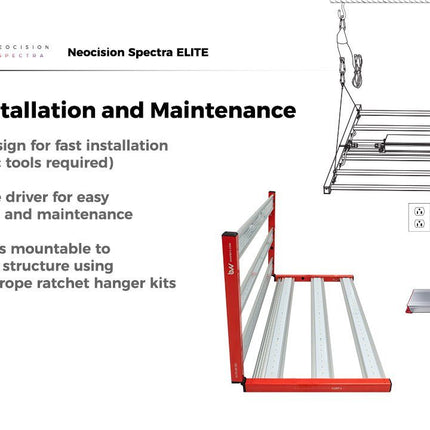

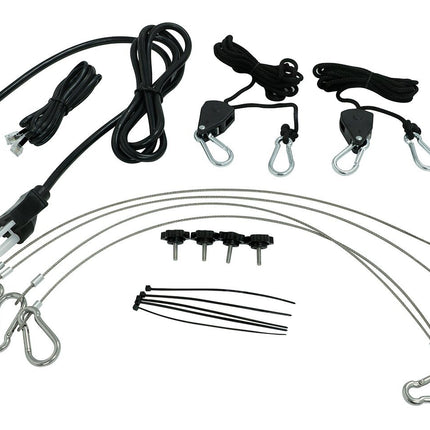

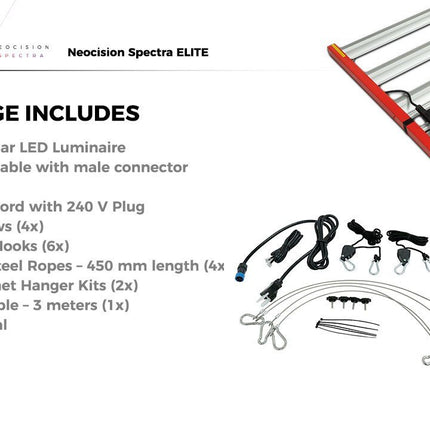

| Adjustable Height Hanging Kit Included |
Yes |
| Fixture Warranty |
7 Years Limited |
| Driver Warranty |
8 Years Limited |
| ETL Safety Certified |
Conforms to UL 1598:2018 Ed.4
Certified to CSA C22.2#250.0:2018 Ed.4
*ETL Safety Certified No. 5020070 |
| DLC Listed |
Yes
|
