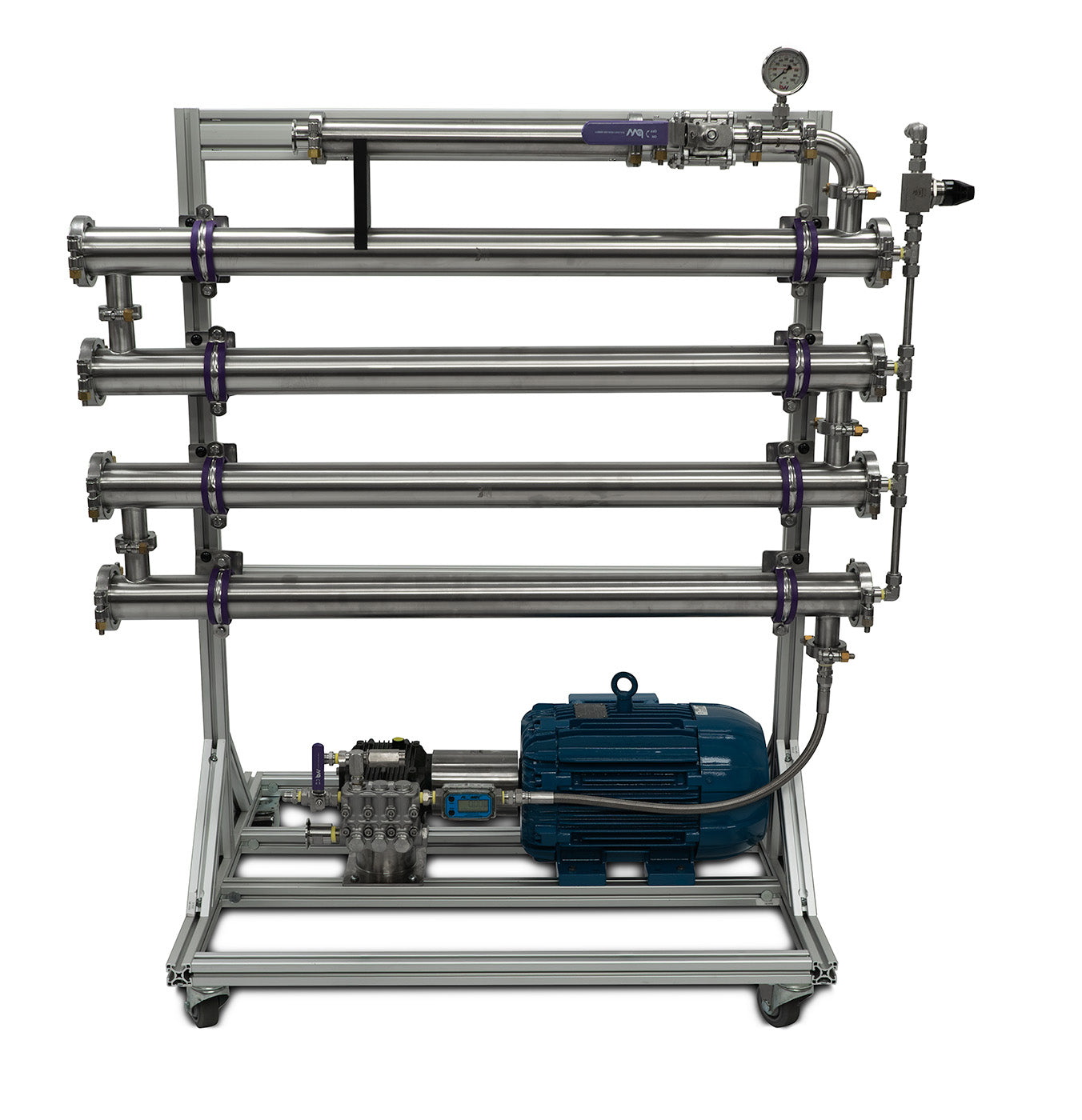

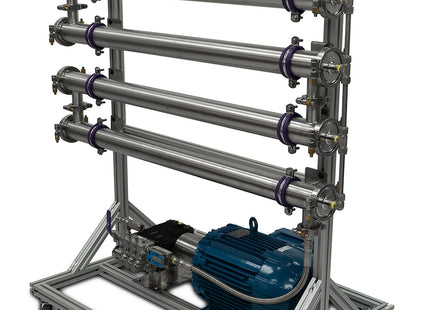

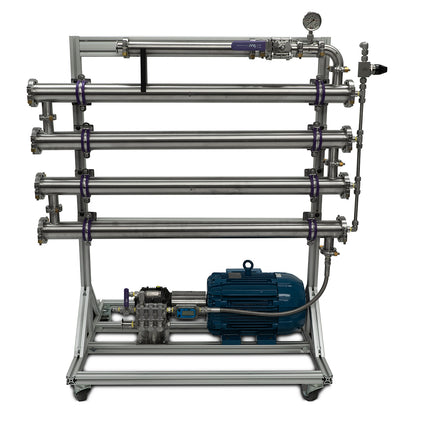

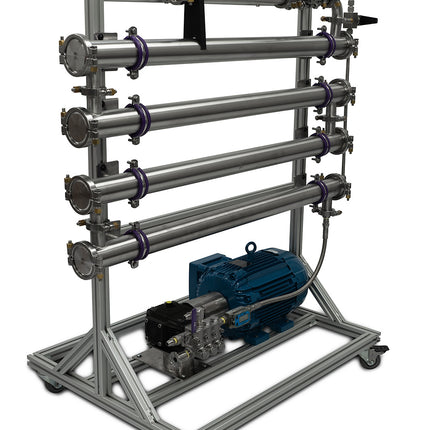

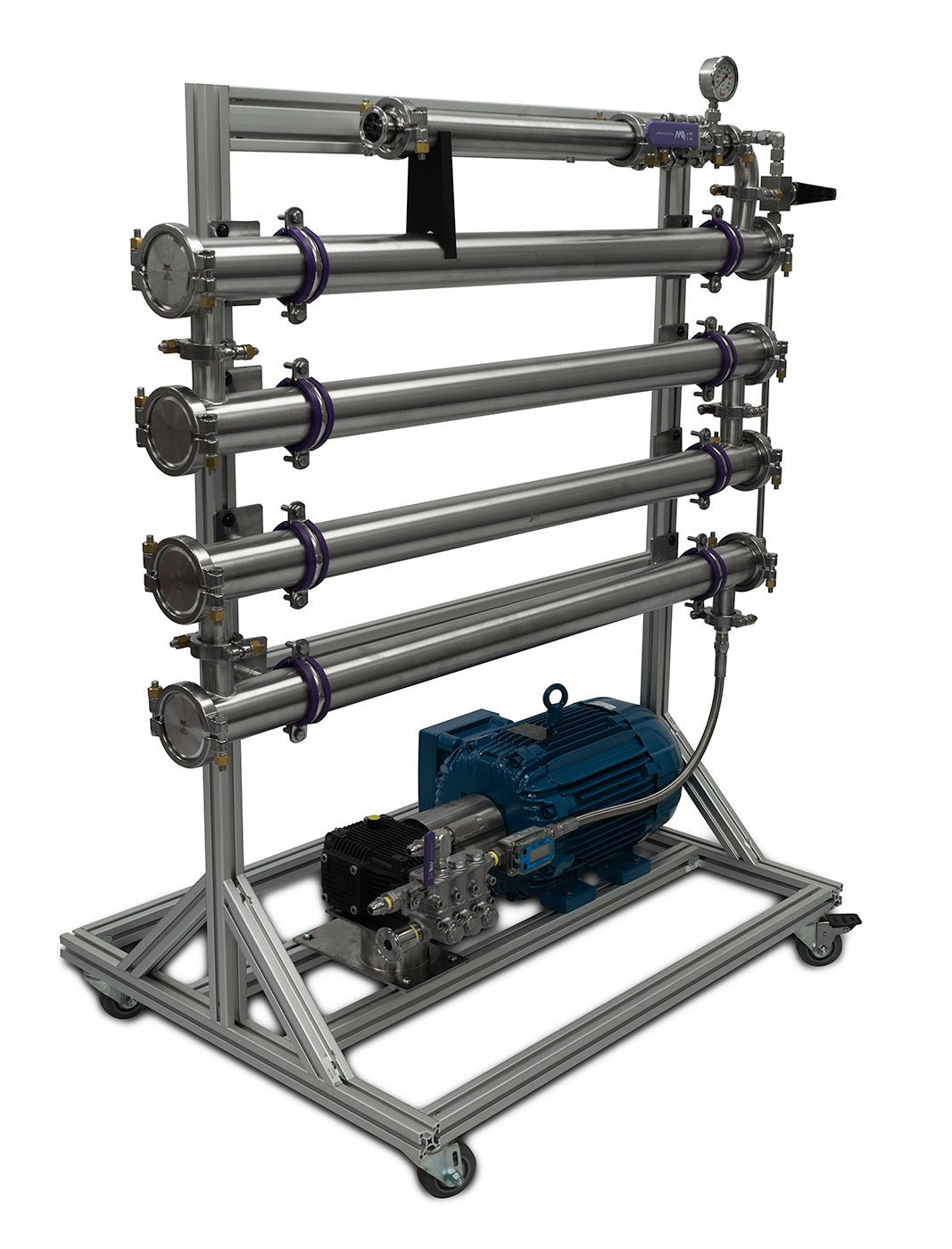

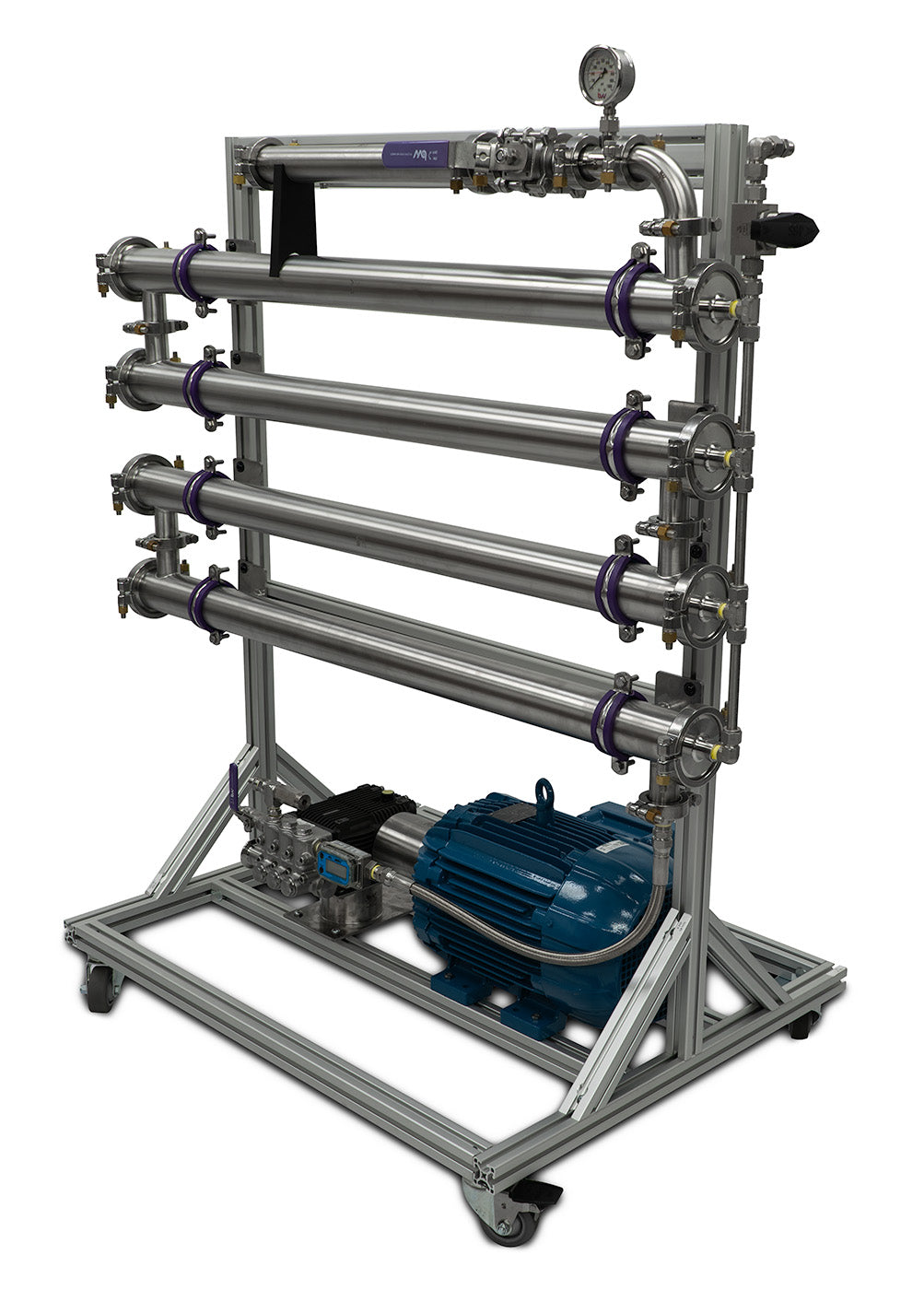

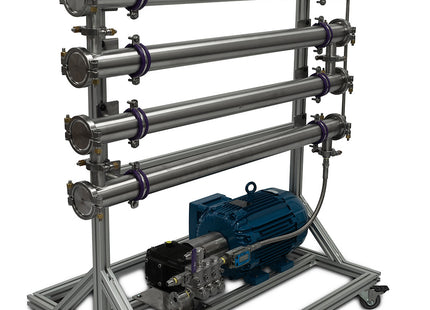

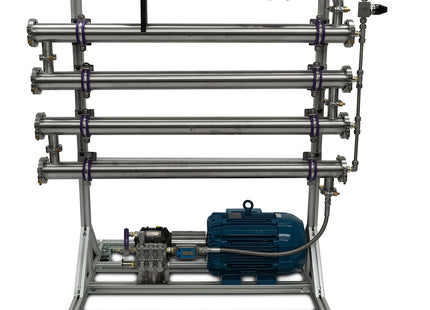

BVV 2540 Nanofiltration Skid
Note: This product carries 8 - 12 week lead time
Perform organic solvent recovery or botanical extract purification with ease with our 2540 nanofiltration skid. Replace up to 7X 50L Rotary evaporators with a single Skid. BVV's 2540 Nanofiltration Skid is designed to meet Class 1 Division 1 standards. With the ability to recover 30 gallons of ethanol per hour without the application of heat, preserving target compounds and utilizing a fraction of the energy consumption of a traditional falling film qualifying our 2540 Nanofiltration Skid for energy saving rebates.
Processing Power
- Capacity: 15 GPH or 30 GPH of solvent recovery.
- Solvents: Ethanol, Methanol
Specifications
- 4X 2540 nanofiltration housings
- Stainless steel 6GPM pump with PTFE seals
- 7.5HP C1D1 1750 RPM Motor
- 7.5HP VFD 1/60/230 NEMA 4X enclosure (13A)
- Insulated 2"x18" Heat Exchanger
- Polyscience 1.5HP Chiller 230/60/1/23.1
- 700PSI Pressure Relief Valve
- C1D1 Flowmeter
-
2X 0-1000 PSI Pressure Gauges
- 1.5" Intake & Retentate Lines
- 1/2" Permeate & Pressure Relief Lines
- Footprint (DxWxH) 30"x39"x79"
- Weight: 400 lb
- Maximum Pressure Rating: 700PSI
Performance
- Variable Frequency Drive-based flow control
- Complete pressure control with manual pressure controls
- Retentate cooling with inline Heat exchanger & chiller
- 700PSI pressure relief valve with diversion line
*Components shown are subject to change*
*This unit is meant for bulk solvent recovery, 90% of the total volume of solvent an additional solvent recovery apparatus is recommended to evaporate to dryness*
