Julabo FL7006
- VendorJulabo
Description

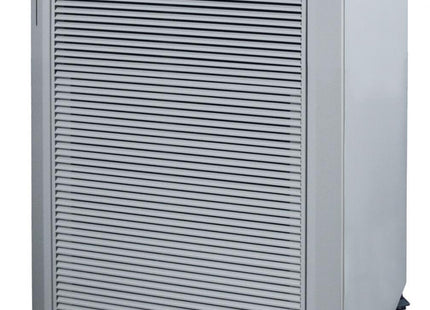

Julabo FL7006
The FL series of chillers for routine cooling applications for the laboratory and industry. The PID control provides a temperature stability of ±0.5°C. All units can be cleaned easily and have a water-proof keypad with LED temperature indication. All instruments include an RS232 interface and alarm shutdown on the front of the units. The filling port is easily accessible from the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows for easy cleaning of the condenser with the drain tap accessible behind the grid. All models include a visible level indication. Air-cooled units have venting slots are on the front and rear enabling installation next to a wall or another apparatus (space saving).
Key Benefits:
- Ergonomic design and easy operation
- Splash-proof keypad
- Large, bright LED display
- Reliable Microprocessor PID temperature control
- Filling level indicator
- Powerful immersion pumps, suitable for continuous operation
- Permissible temperature in return line +80°C
- Easy filling from the top with hinged protective lid
- Low liquid level protection with optical and audible alarm signal
- Integrated stainless steel bath tanks
- Removable venting grid for cleaning of the condenser
- Front drain
- No side vents
- RS232 interface for PC-connection
- IP class according to IEC 60529: 21
- Alarm output, potential-free change-over contact (max. 30 VA)
- Pressure Indicator
- By-pass valve to adjust pump pressure
| Specifications | |
|---|---|
| Order No. | 9666070 |
| Model Series | FL Series |
| Working Temperature Range (°C) | -20° to +40° |
| Temperature Stability (°C) | ±0.05 |
| Temperature Control | PID temperature control |
| Display Resolution | 0.01 °C |
| Temperature Display | LED |
| Cooling Capacity |
°C 20 0 -10 -20 kW 7 5.1 3 1.55 |
| Pump capacity Flow Rate (l/min) | 60 |
| Pump Capacity Flow Pressure (psi) | 7.25...87.0 |
| Pump Connections | G1 1/4-inch |
| Filling Volume Liters | 39...47 |
| Barbed fittings diameter (inner dia. / mm) | 1-inch |
| Refrigerant | R404A |
| Digital Interface | RS232, Optional Profibus |
| Ambient Temperature | 5…40 °C |
| Noise Level (dBA) | 74 |
| Classification | Classification III (FL)according to DIN 12876-1 |
| Included with | 2 barbed fittings for tubing 3/4" inner dia. (pump connections G1 1/4"male) |
| Cooling of Compressor | Air |
| Power requirement V / Hz / A | 3x 230/60/23 |
| Cooling capacity °C | 7kW (@ 20°C), 6.4kW (@ 10°C), 5.1kW (@ 0°C), 3kW (@ -10°C), 1.55kW (@ -20°C) |
| Alarm Signal | acoustically & optical |
| Temperature Selection / Display | °C |
| Volumetric Capacity Liters | 39...47 |
| Outer dimensions W x L x H inch | 30.7 x 33.5 x 58.3 |
| Available Voltage Versions | 230 V / 3 Ph. / 60 Hz, 400 V / 3Ph. / 50 Hz |
| Other Characteristics | Removable venting grid for convenient cleaning to maintain cooling performance. Internal pump by-pass valve to regulate pressure |
| Characteristics / Display | Easy to read: Large LED temperature display for actual value and setpoint(resolution 0.1 °C) |
| Characteristics / Operation | Simple and fast : Convenient 3-key setpoint adjustment (FLmodels) |
| Characteristics / Temperature Control | Precise: PID Temperature control with set control parameters, temperature stability ±0.02…±0.2 °C |
| Characteristics / Refrigeration Technology | Consistent cooling capacity: Easily removable venting gridfor quick and easy cleaning |
| Characteristics / Technical Features | Serial connection: RS232 interface for PC connection, e.g. data communication and recording of measured values |
