HUBER KISS K6 Refrigerated Heating Bath

Description

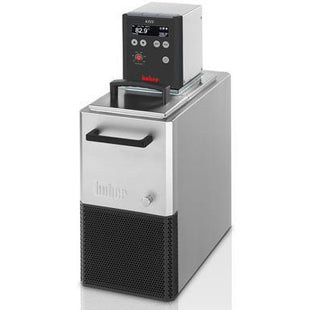

HUBER KISS K6 Refrigerated Heating Bath

    ( Please Note: There is a shipping lead time 2-3 weeks )



     The Kiss K6 Refrigerated Heating Baths is ideal for a variety of heating and cooling tasks in research and industry such as sample temperature control, materials testing, quality control, analyses, etc. This unit consist of a stainless steel bath, immersion thermostat, pressure and suction pump with wetted materials made from industrial plastic or stainless steel, and air cooled refrigeration unit. In addition, the cooling circulators include automatic refrigeration capacity adjustment which reduces energy consumption and waste heat down to the absolute essential. New KISS controller combines state-of-the-art technology with stylish design. The simple to navigate menu makes operating these baths as easy as pushing a few buttons.





General Information & Temperature Controller
Temperature range -25 to 200 °C
Temperature stability ±0.05 °C
Temperature Display OLED Display
Alarm message optical, acoustical
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 210 x 400 x 546 mm | 8.27 x 15.75 x 21.5 inches
Weight 25 kg | 55.12 pounds
Heating / Cooling Capacity
Heating capacity 1,5 kW
Cooling capacity 20 0 -10 -20 °C
0,2 0,15 0,1 0,05 kW
Cooling machine air-cooled
Refrigerant R290 (A3, H220) (0,047 kg)
Circulation Pump
Pressure pump max. 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi
Suction pump max. 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi
Pump connection M16x1 AG male
Connections

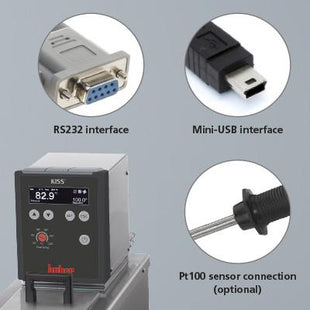

Digital interface USB, RS232
Operating Data
Old sku 2008.0023.99
Permissible ambient temp. 5 to 40 °C
Bath opening W x D / BD 5.51 x 4.72 / 5.91 inches
Bath volume 4.5 Liters | 1.19 gal
Power supply 110-120V 1~ 50/60Hz
Current max. 15 + 3,2 A

HUBER KISS K6 Refrigerated Heating Bath

Product form

SKU: 2008.0045.98

$9,605.85
