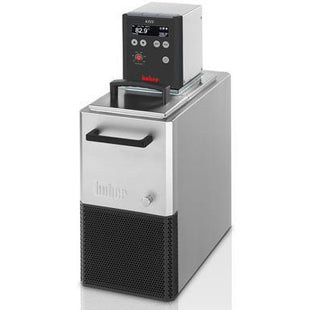

HUBER KISS K6 Refrigerated Heating Bath
- VendorHuber
Description
HUBER KISS K6 Refrigerated Heating Bath
( Please Note: There is a shipping lead time 2-3 weeks )
The Kiss K6 Refrigerated Heating Baths is ideal for a variety of heating and cooling tasks in research and industry such as sample temperature control, materials testing, quality control, analyses, etc. This unit consist of a stainless steel bath, immersion thermostat, pressure and suction pump with wetted materials made from industrial plastic or stainless steel, and air cooled refrigeration unit. In addition, the cooling circulators include automatic refrigeration capacity adjustment which reduces energy consumption and waste heat down to the absolute essential. New KISS controller combines state-of-the-art technology with stylish design. The simple to navigate menu makes operating these baths as easy as pushing a few buttons.
- Download Data Sheet
- Click Here 3 Year Warranty Register
- Please observe the notes on installation and/or the space requirements of our products.
| General Information & Temperature Controller | |
|---|---|
| Temperature range | -25 to 200 °C |
| Temperature stability | ±0.05 °C |
| Temperature Display | OLED Display |
| Alarm message | optical, acoustical |
| Controller | KISS |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 210 x 400 x 546 mm | 8.27 x 15.75 x 21.5 inches |
| Weight | 25 kg | 55.12 pounds |
| Heating / Cooling Capacity | |
| Heating capacity | 1,5 kW |
| Cooling capacity | 20 0 -10 -20 °C 0,2 0,15 0,1 0,05 kW |
| Cooling machine | air-cooled |
| Refrigerant | R290 (A3, H220) (0,047 kg) |
| Circulation Pump | |
| Pressure pump max. | 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi |
| Suction pump max. | 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi |
| Pump connection | M16x1 AG male |
| Connections | |

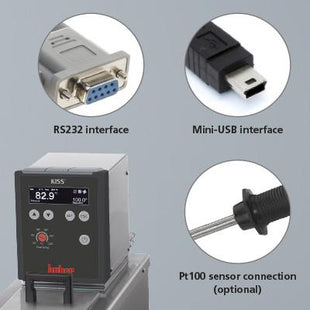

| Digital interface | USB, RS232 |
| Operating Data | |
| Old sku | 2008.0023.99 |
| Permissible ambient temp. | 5 to 40 °C |
| Bath opening W x D / BD | 5.51 x 4.72 / 5.91 inches |
| Bath volume | 4.5 Liters | 1.19 gal |
| Power supply | 110-120V 1~ 50/60Hz |
| Current max. | 15 + 3,2 A |
HUBER KISS K6 Refrigerated Heating Bath
- VendorHuber
SKU: 2008.0045.98
$9,596.18
You will earn 9,596.18 points for this purchase.- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
