Description
Fully Jacketed Base with 1.5" Tri-Clamp/ Tri-Clover Drain Port

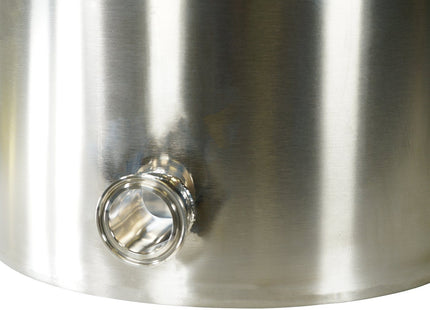

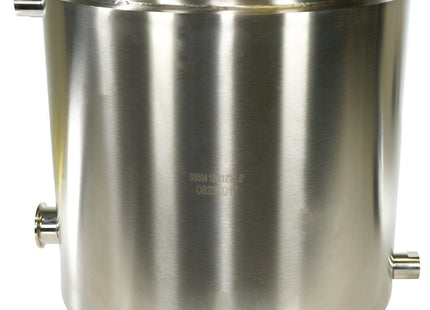

This Fully Jacketed Base features a full outer jacket to allow the circulation of heat transfer fluid. The base also has a sanitary Tri-Clamp port welded through the jacket and base for easier drainage of processed material and extract from the stainless steel base.
This base is made out of 304 High Polish Stainless steel and has 2 1/2" FNPT Ports on the outer jacket to allow the circulation of fluid to heat or chill the base and also has a 1.5" Tri-Clamp port that allows the drainage of material from inside the base without having to lift it up and tip it over.
| Specifications |
| Material |
304 Stainless Steel |
| Sizes Available: |
10" Tri-Clamp X 12" |
|
12" Tri-Clamp x 12" |
| Drain Port Size |
1.5" Tri-Clamp |
| Jacket Port Size |
1/2" FNPT |
