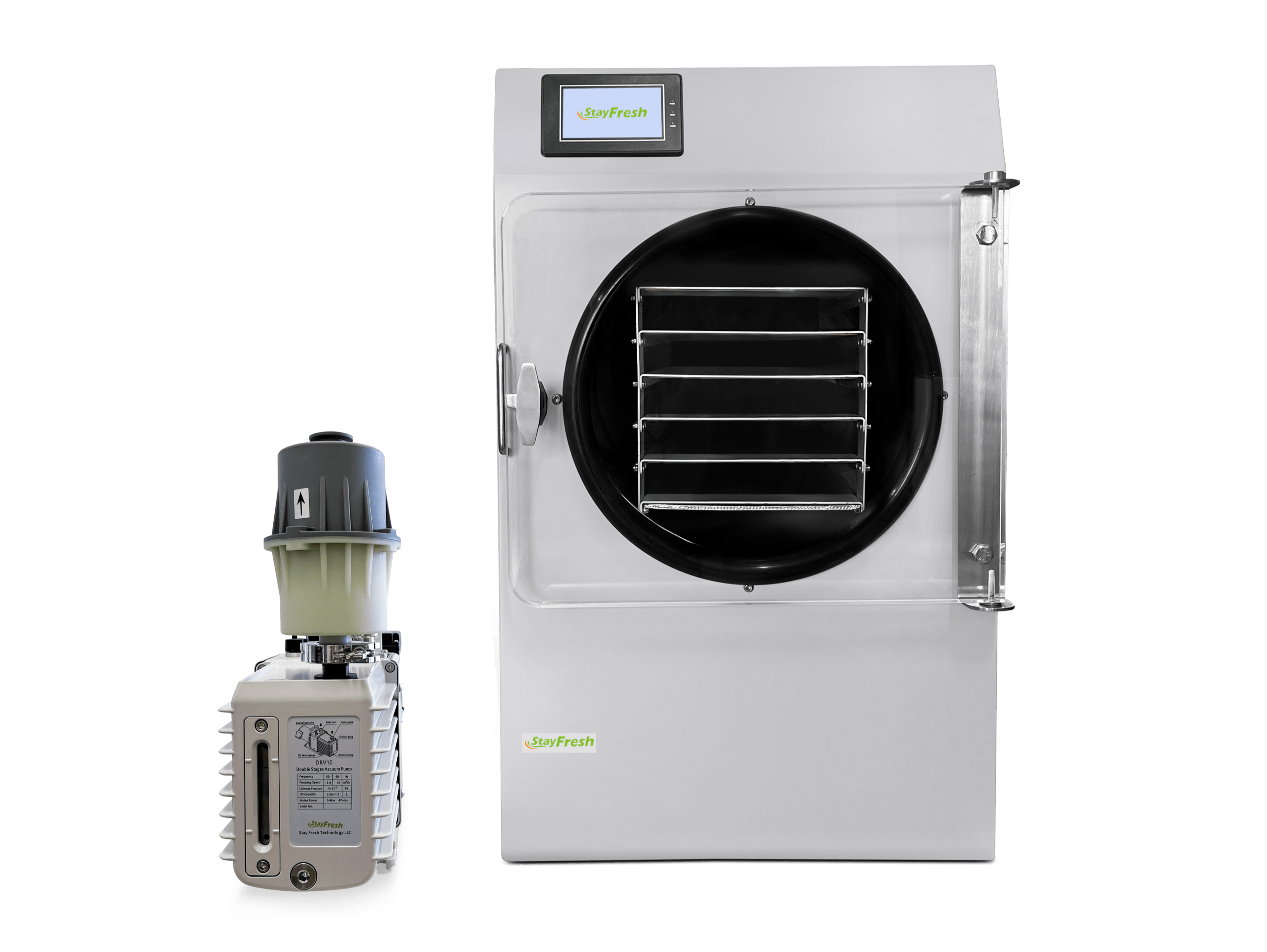

Freeze Dryer with Commercial Pump

Description

Fresh Food Per Batch: 12-18 lbs.

Fresh Food Per Year: Up to 3600 lbs.

Tray Space: 800 sq. inches

Model features:

  • Patented smart freeze drying algorithm.
  • Multiple drying methods for beginners and advanced users.
  • Motorized ball valve for oil contamination prevention.
  • RTD temperature sensors for drying assistance.
  • Industrial grade glass-to-metal seal feed-through.
  • Solid state relay for the heater. All replaceable relays.
  • Stainless steel/aluminum construction for major parts.
  • Independent vacuum valve for pressure normalization.
  • Candy mode makes freeze-drying sweets easy and quick.
  • Stainless steel drain line.
Model specifications:
  • Ice capacity 14lb.
  • Tray space 800 sq. inches.
  • Process up to 18lb of food in one batch.
  • Main drying time 16 - 30 hours for 8lb of food.
  • Spacing between shelves 1.6 in.
  • Include five trays as one set. Tray size 8 in. x 20 in. x 0.75 in.
  • Shelf temperature setting range -50F to 150F.
  • Freeze dryer weighs (vacuum pump excluded) 165lb.
  • Freeze dryer dimension W 20 in. x D 26 in. x H 31 in.
  • Freeze dryer cold trap (bottom of chamber) -40F.

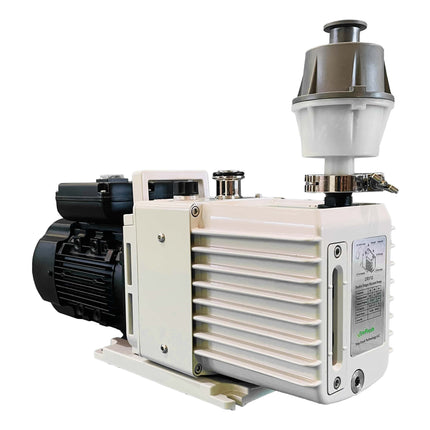

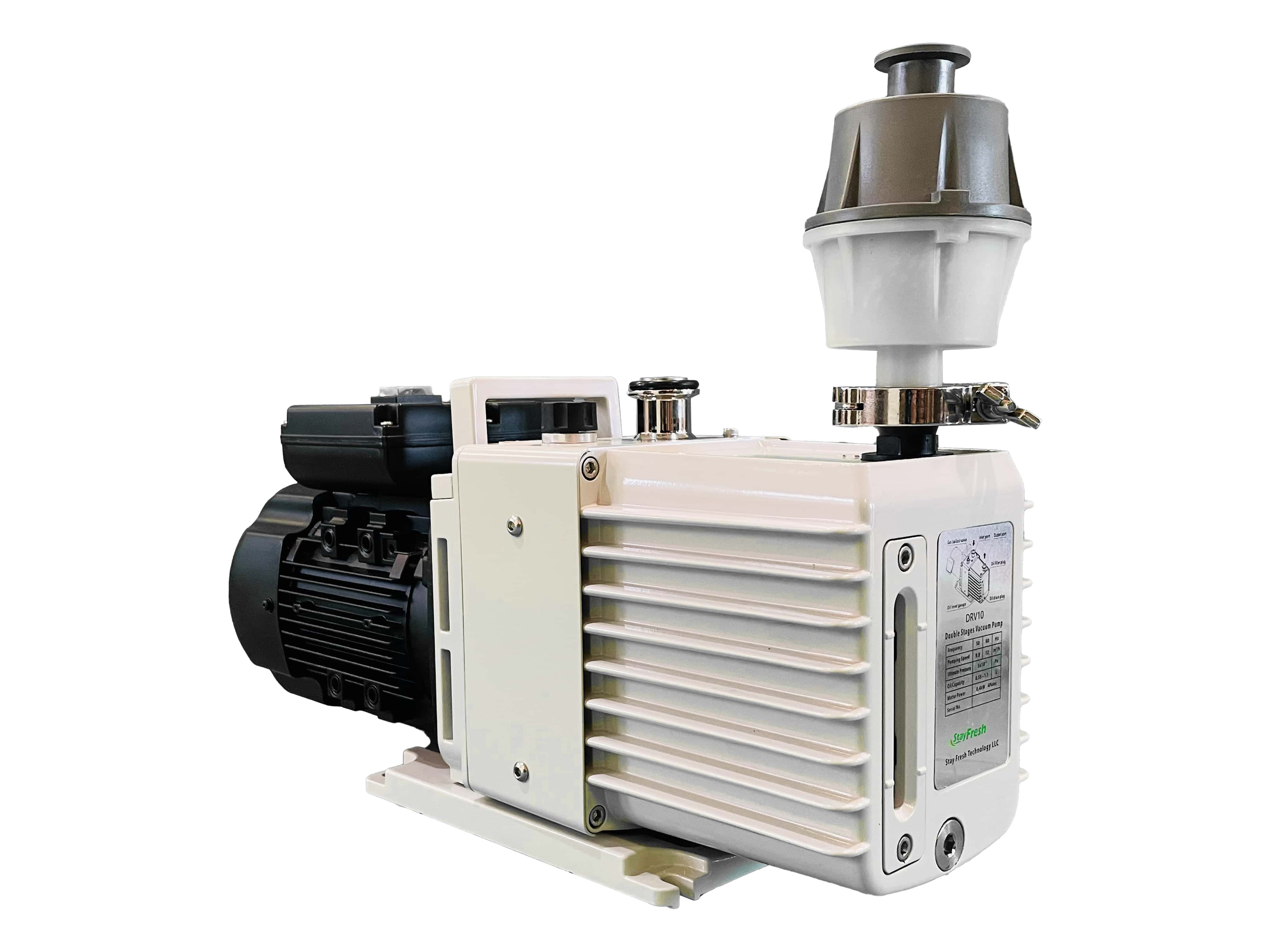

  • Include a $1295 Commercial pump.
  • Vacuum pump weighs 55 lb.
  • Vacuum pump dimension W 6.5 in. x D 20 in. x H 9 in.
  • Oil mister filter dimension W 4 in. x D 4 in. x H 6 in.
  • Vacuum pump flow rate 7.2CFM.

Installation requirement:

  • A dedicated 15/20 Amp electrical outlet is recommended.

Free Accessories:

  • An oil filter, an impulse sealer,  50 mylar bags, 50 packs of oxygen absorbers, a pack of silicone mesh.

Shipping:

       The freeze dryer is shipped in two boxes on a pallet: a 174lb freeze dryer box of size 25"x29"x36", a 60lb vacuum pump box, and a 10lb accessory box. The pallet size 40"x26"x41". The entire shipment weighs about 265lb.

Download user manual

Freeze Dryer with Commercial Pump

Product form

SKU: 4H11560USI1

$5,623.51  $4,672.35

    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

    Description

    Fresh Food Per Batch: 12-18 lbs.

    Fresh Food Per Year: Up to 3600 lbs.

    Tray Space: 800 sq. inches

    Model features:

    • Patented smart freeze drying algorithm.
    • Multiple drying methods for beginners and advanced users.
    • Motorized ball valve for oil contamination prevention.
    • RTD temperature sensors for drying assistance.
    • Industrial grade glass-to-metal seal feed-through.
    • Solid state relay for the heater. All replaceable relays.
    • Stainless steel/aluminum construction for major parts.
    • Independent vacuum valve for pressure normalization.
    • Candy mode makes freeze-drying sweets easy and quick.
    • Stainless steel drain line.
    Model specifications:
    • Ice capacity 14lb.
    • Tray space 800 sq. inches.
    • Process up to 18lb of food in one batch.
    • Main drying time 16 - 30 hours for 8lb of food.
    • Spacing between shelves 1.6 in.
    • Include five trays as one set. Tray size 8 in. x 20 in. x 0.75 in.
    • Shelf temperature setting range -50F to 150F.
    • Freeze dryer weighs (vacuum pump excluded) 165lb.
    • Freeze dryer dimension W 20 in. x D 26 in. x H 31 in.
    • Freeze dryer cold trap (bottom of chamber) -40F.
    • Include a $1295 Commercial pump.
    • Vacuum pump weighs 55 lb.
    • Vacuum pump dimension W 6.5 in. x D 20 in. x H 9 in.
    • Oil mister filter dimension W 4 in. x D 4 in. x H 6 in.
    • Vacuum pump flow rate 7.2CFM.

    Installation requirement:

    • A dedicated 15/20 Amp electrical outlet is recommended.

    Free Accessories:

    • An oil filter, an impulse sealer,  50 mylar bags, 50 packs of oxygen absorbers, a pack of silicone mesh.

    Shipping:

           The freeze dryer is shipped in two boxes on a pallet: a 174lb freeze dryer box of size 25"x29"x36", a 60lb vacuum pump box, and a 10lb accessory box. The pallet size 40"x26"x41". The entire shipment weighs about 265lb.

    Download user manual
