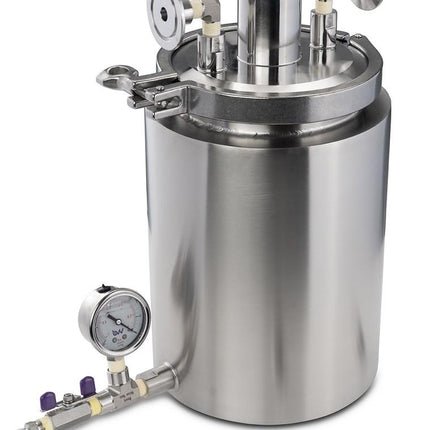

Cold Trap 2" Stainless Steel

Description

Cold Trap 2" Stainless Steel


This Stainless Steel Cold is designed and intended for use with the Polyscience IP60 Cold Finger (Can also be used with dry Ice) to create a cold trap that can achieve extremely frigid temperatures. These cold traps have 2 1/4" FNPT ports with one having a dip tube to the bottom of the trap to achieve higher vapor condensing rates with the 2" Diameter Center opening for the IP60. This Cold trap also has an insulating vacuum jacket around the entire container to maintain the subzero temperatures and help achieve the maximum minimal temperature of the IP60. Unlike many cold Traps on the market, this one is also made out of 304 Stainless steel and the internal parts are resistant to most chemicals and easily cleaned due to the Tri-Clamp lid design.




Specifications
Material 304 Stainless Steel
Temperature Rating -200 to 200°C
Ultimate Vacuum <100millitorr / microns
Cold Finger Internal Dimensions 1.85" x 11.75" (Fits Polyscience IP60)
Trap Internal Dimensions 5.85" x 10"
Outside Dimensions 8" x 14" x 15" (Includes jacket gauge and valve hardware)
Weight 28LBS






Cold Trap 2" Stainless Steel

Product form

SKU: CT60010-B

$763.03

    • Unlock Bulk & Wholesale Pricing. Call 331-281-0154 for special discounts.
    Financing Available

    Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

    Description

    Cold Trap 2" Stainless Steel


    This Stainless Steel Cold is designed and intended for use with the Polyscience IP60 Cold Finger (Can also be used with dry Ice) to create a cold trap that can achieve extremely frigid temperatures. These cold traps have 2 1/4" FNPT ports with one having a dip tube to the bottom of the trap to achieve higher vapor condensing rates with the 2" Diameter Center opening for the IP60. This Cold trap also has an insulating vacuum jacket around the entire container to maintain the subzero temperatures and help achieve the maximum minimal temperature of the IP60. Unlike many cold Traps on the market, this one is also made out of 304 Stainless steel and the internal parts are resistant to most chemicals and easily cleaned due to the Tri-Clamp lid design.




    Specifications
    Material 304 Stainless Steel
    Temperature Rating -200 to 200°C
    Ultimate Vacuum <100millitorr / microns
    Cold Finger Internal Dimensions 1.85" x 11.75" (Fits Polyscience IP60)
    Trap Internal Dimensions 5.85" x 10"
    Outside Dimensions 8" x 14" x 15" (Includes jacket gauge and valve hardware)
    Weight 28LBS
