Cascade CVO-5 DOUBLE UP Vacuum Package, 120V

VendorCascade Sciences
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Cascade CVO-5 DOUBLE UP Vacuum Package, MAXTRAP -50C Cold Trap

Cascade’s CVO-5 DOUBLE UP Vacuum Package is ideal for large volume production with the flexibility of small batch management. The package offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material.

Cascade’s MAXTRAP Vacuum Cold Traps extend vacuum pump life by trapping excess moisture and volitales during vacuum drying or purging.

Typically ships in 3-5 weeks

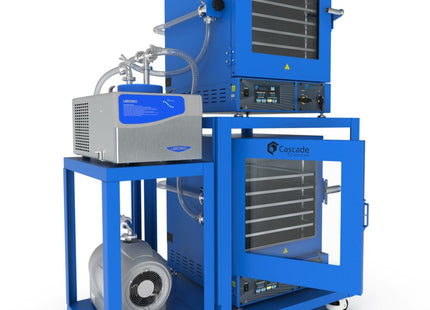

CVO-5 DOUBLE-UP Package Includes:

2x Cascade Sciences CVO-5 Vacuum Ovens
1x Heavy-Duty Industrial Mobile Cart
10x Adjustable, Removable Shelves
2x Adjustable Side Shelves
2x MAXEVAP Connection Kits
1x Agilent IDP15 Oil-Free Vacuum Pump, 9cfm

WITH MAXTRAP50 ( -50°C Cold Trap)

WITH MAXTRAP105 ( -105°C Cold Trap)

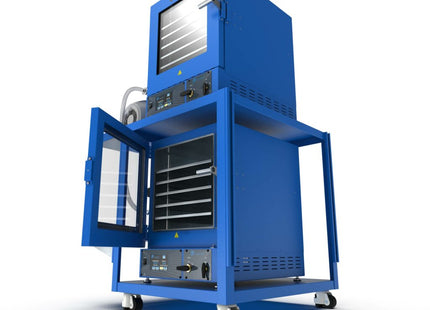

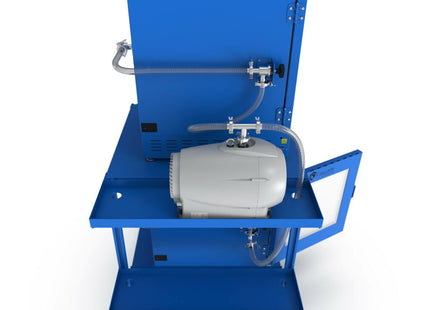

The 5 cubic foot vacuum ovens are stacked on an industrial grade, mobile rack for mobility and ease of cleaning the laboratory. Casters are lockable. Side mounted pump shelf allows for easy powering ON/OFF of vacuum pump.

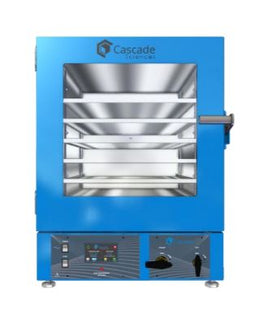

CVO-5 Vacuum Oven Features

NRTL Certified by TUV
5 each adjustable shelves
Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven
Bright LED lights in window for visibility of sensitive material
Touchscreen LED Control Panel with adjustable settings
Smooth, quarter-turn vacuum and vent valves
Energize vacuum pump from control panel
Rear KF-25 port allows for rapid MAXEVAP purging or running feedthroughs inside oven for monitoring
120V or 220V power options are available
Stainless Steel option available
Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007 156CFR/201 11 SGCC -2577 ½ UA
Adjustable leveling feet ensure your unit sits solid and level in the workspace
Made in USA

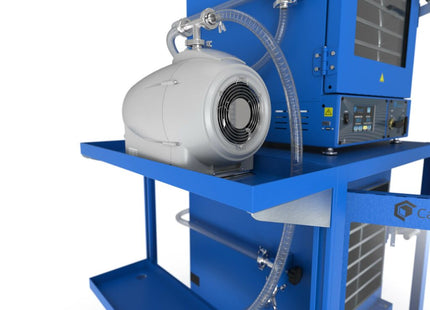

Agilent IDP15 Oil-Free Scroll Pump Features

9 CFM pumping speed
Quiet. Less noisy that diaphragm or oil-rotary vane pumps
No Inlet / Exhaust Filters Required
Hour Meter For Tracking Service Intervals
1 Year Warranty
NRTL Certified /Made in USA
Expert Rebuild/Maintenance Available
Maintenance is the replacement of a single interior tip seal. Order our IDP15 Tip Seal Replacement Kit or ask us about our maintenance service.
Pull Deeper Vacuum / Better Vapor Tolerance With Gas Ballast Positions. The IDP15 has two gas ballast ports that assist the pump in handling condensing gases such as water vapor, or other gaseous products that become liquids or solvents when reaching atmospheric pressure.

MAXTRAP -50°C/-105°C Cold Trap Features

Cascade’s COLDWELL 304 Stainless Steel Trap
3 Quart Capacity
Viton Gasket
Labconco -50°C/-105°C Refrigerated Base
Green CFC / HFC Free Refrigerants
KF-25 Inlet/Outlet, Connection Line & Hardware
3mm Neoprene Insulator Cap
Requires 800ml (~ 3.5 cups) of a transfer fluid such as ethanol. Not Included.
Quality Made in USA
NRTL Certified

Model CVO-5

VOLUME:
4.5 Cubic Ft. (127 Cubic Liters)

SHELVING:
Includes 5 removable, adjustable (recommend 8 MAX)
Surface Area: 18″W x 24″D
Weight Capacity: 50 lbs (22.7Kg)
Aluminum

OVEN INTERIOR:
18”W x 24”D x 18”H
457mm x 609mm x 457mm

OVEN EXTERIOR:
33.3” W x 38.6” D x 31.8”H
846mm x 980mm x 808mm

WEIGHT:
360 lbs / 163.3 Kg

TEMPERATURE RANGE:
Operating Range: Ambient +14.4°C to 150°C / +26°F to 302°F

TEMPERATURE UNIFORMITY:
@ 105°F +/- 2.0°F
@ 200°F +/- 3.6°F
@ 300°F +/- 5.5°F

@ 40°C +/- 1.0°C
@ 90°C +/- 2.0°C
@ 150°C +/- 3.0°C

TEMPERATURE STABILITY:
@ 105°F +/- 0.2°F
@ 200°F +/- 0.4°F
@ 300°F +/- 0.2°F

@ 40°C +/- 0.1°C
@ 90°C +/- 0.2°C
@ 150°C +/- 0.1°C

HEAT UP FROM AMBIENT TO STABILIZATION TIME:
To 105°F (40°C) 60 minutes
To 200°F (90°C) 126 minutes
To 300°F (150°C) 180 minutes (170 minutes for 220V version)

COOL DOWN TIME:
From 105°F (40°C) 345 minutes
From 200°F (90°C) 285 minutes
To 300°F (150°C) 335 minutes (460 minutes for 220V version)

*Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product, ambient lab conditions.

VACUUM VALVE:
¼ Turn Lever

VENT VALVE:
¼ Turn Lever

INTERIOR LIGHTING:
LED Strips (Rated to 150°C)

GLASS WINDOW:
Tempered NGI-US to ANSI Z97.1.2007

VACUUM GAUGE:
Digital, selectable to read in inches mercury (Hg) or torr, barr

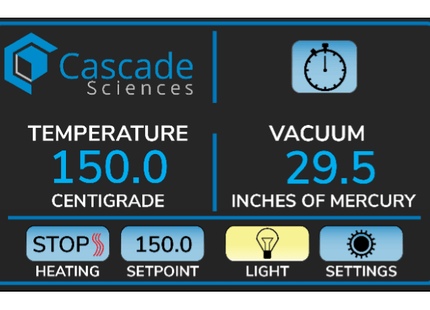

CONTROLLER:
Touch Screen
Accurate Within 1°F
Independent Overtemp Failsafe
Easy updates with USB port

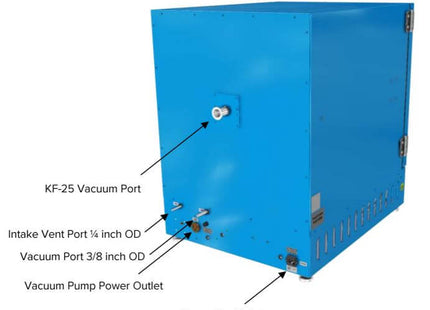

PORTS (REAR):
Vacuum = 3/8^th Barb
Vent = ¼” Barb
Auxiliary KF-25 Port

INERT GAS INTRODUCTION:
¼” Vent Barb
15 psi max inlet pressure

POWER:
110V – 120V / 1ph / 14A 50/60Hz
Cord Included
NEMA 5-15 Power Outlet

1105 BTU/hr
Rating at max power
