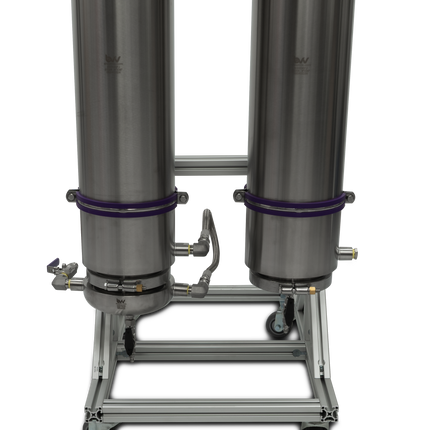

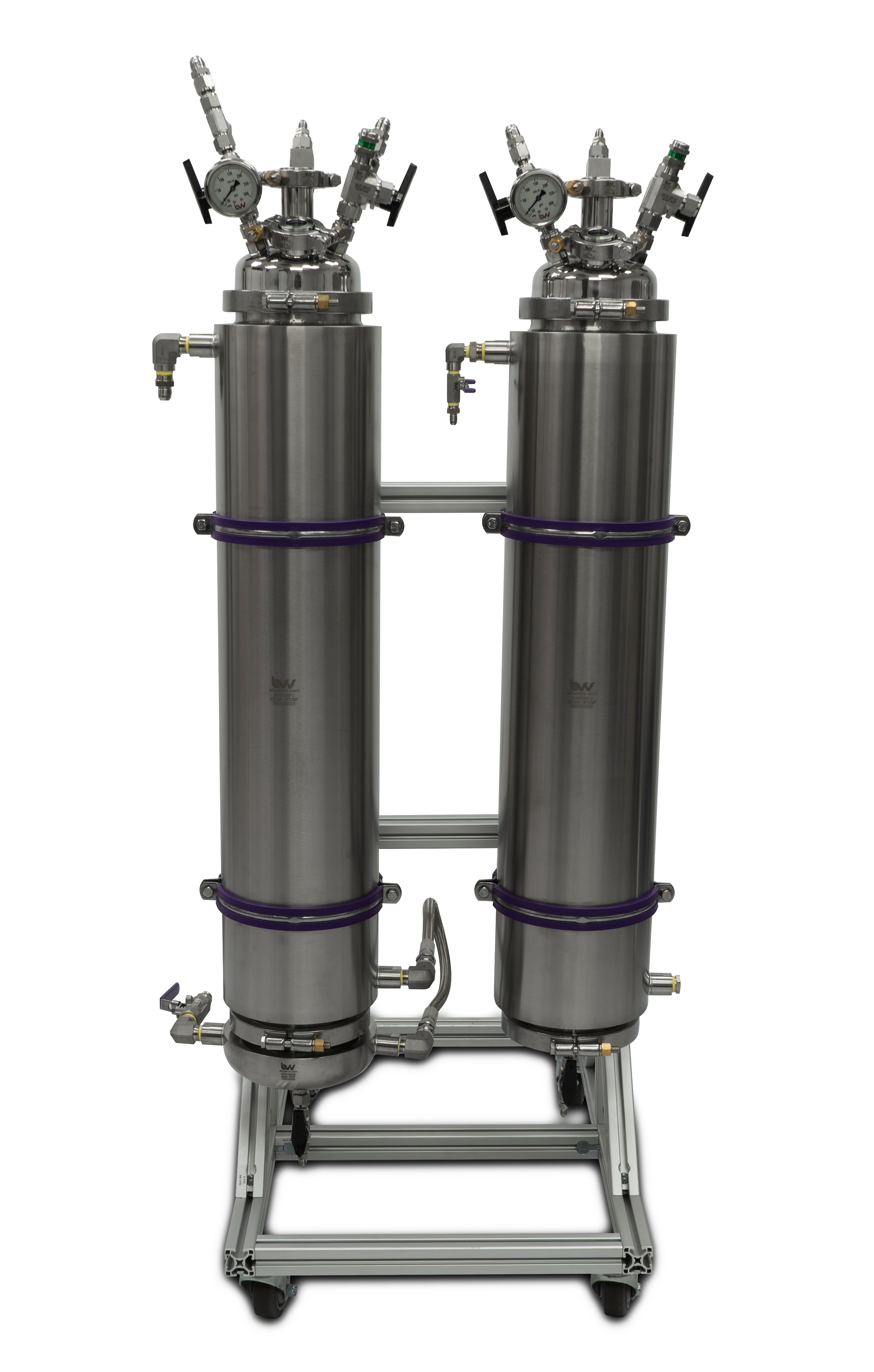

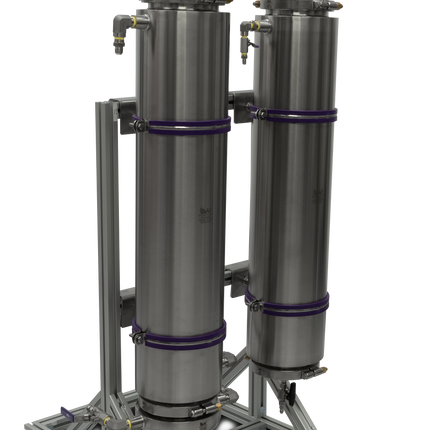

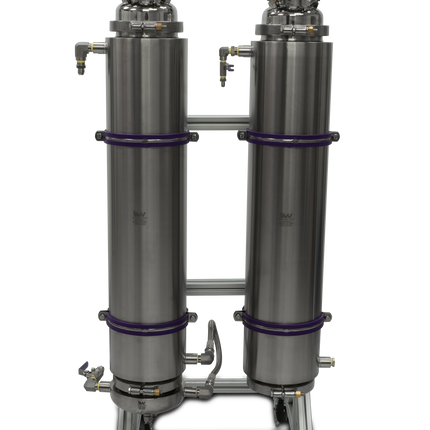

The BVV Evaporative Crystallizer is a simple, cost-effective crystallization solution that utilizes the unique properties of butane to rapidly produce high-purity crystalline isolates without the use of expensive mixers or chillers. With a 5 kilogram batch size and a 30-45 minute run time, the BVV Evaporative Crystallizer punches above its price tag, offering modestly high-throughput with the capability of producing 100% pure isolates. 3P Certz Certified, the BVV Evaporative Crystallizer can integrate with any existing butane extraction systems or can be utilized as a standalone solution to dissolve and crystallize most high-purity extracts.
Key Advantages
-
High Speed Dissolution: 17.8L Heating Column allows for the Rapid Dissolution of extracts and allows for the accumulation of extract batches for high volume crystallizations.
-
Evaporative Crystallization: 16.5L Vacuum Jacketed Crystallization Column Utilizes simultaneous volume reduction and evaporative cooling to initiate rapid crystal growth.
-
Precision Crystal Rinsing: Achieve 100% Purity by optimizing the crystallization and rinsing procedure or by performing a secondary recrystallization.
-
Mother Liqour Recovery: Collection and recovery of Mother Liquor and rinse butane, allowing for low-temperature purging and preservation of delicate compounds.
Optimized for a quick and efficient cooling crystallization 2:1 Extract-to-butane ratio, the system includes a 17.8L Jacketed Heating Column, a 16.5L Vacuum Jacketed Crystallization Column,
Engineered for compliance and reliability, the BVV Evaporative Crystallizer is peer-reviewed and 3P-certified to meet or exceed Class 1 Division 1, NFPA 58, and ASME standards, incorporating 3A sanitary compression and Tri-Clamp fittings for durability and precision.
Capable of processing 20+ kilograms of extract per 8-hour shift, this system delivers the scalability, precision, and affordability extractors need to elevate their production capabilities.
