Bullseye Precision Gauge | Portable Vacuum Gauge | .001 to 2 Torr Accuracy
- VendorDigiVac
Description
Bullseye Precision Gauge | Portable Vacuum Gauge | .001 to 2 Torr Accuracy
The Bullseye Precision Gauge is the ideal portable vacuum gauge to serve many applications. This patented vacuum gauge offers Graphical Displays and graphics supporting real-time analytics (Leak, Pump, Outgas, Stable)
- Visual graphing feature right on the display
- Display pinpoints the root of the problem so you get it right the first time
- Put it anywhere with its magnet and kickstand

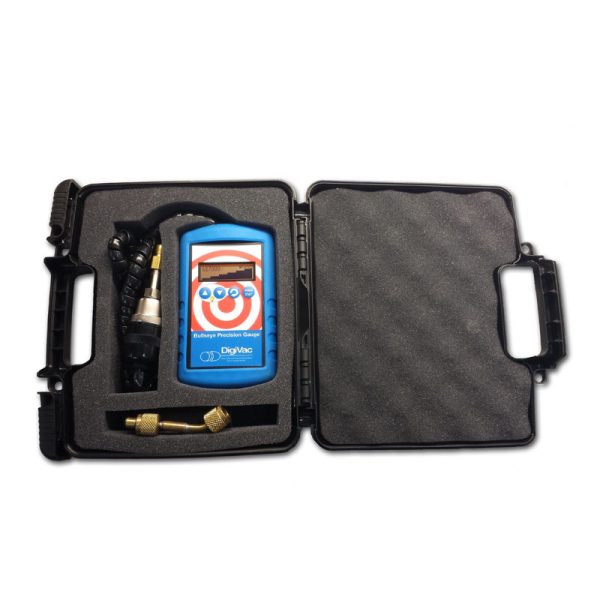

- Options: Rugged carrying case designed for instrument, back-up sensor and these adapters that can change the NPT to a KF25 or KF16 vacuum interface adapters
- Sensor (Probe) Replacements: This gauge is paired with the Thermocouple Plus/531 Equivalent Sensor, but works with Agilent 531 or 536 sensors as well if you are looking for a more robust sensor option
Numeric & Graphical Displays
See vacuum readings in either numbers or easy-to-read graphs
Calibrated & Precise
Delivered pretested and calibrated with thermocouple sensor under actual vacuum against a NIST standard.
Extended Battery Lifespan
Solid state electronics are built into the Bullseye Precision Gauge. The portable vacuum gauge operates using AA batteries and lasts 70 hours.
Applications
Vacuum pump monitoring, vacuum pump testing, baseline vacuum pump performance, & transformer dry-out, distillation monitoring
Bullseye Precision Gauge Accuracy
Remember to choose your vacuum gauge that gives you the accuracy you need for your application. This Bullseye comes with a thermocouple sensor, which has better accuracy in the millitorr up to 6 Torr.
If you need your Bullseye Gauge to have CE rating then choose either the Bullseye with 531 or Bullseye with 536 KF25
| 1 to 99 millitorr | +/- 2 millitorr or 20% |
| 100 to 2000 millitorr | +/- 10% |
| 2 to 6 Torr | +/- 25% |
| Above 6 Torr | Continuous and monotonic (increasing reading indicates increasing pressure) |
| Units | Torr, mbar, bar, kPa, inHg, mm Hg, millitorr, microns, inches of water, PSI, Pa |
| Control Range | 1E-4 – 1000 Torr |
| Range with Accuracy | .001 – 5 Torr |
| Sensor Type | SEN-VGT500, Thermocouple Plus |
| Dimensions | 6.2”H x 3.7”W x 1.3”D |
| Certifications | ROHS and CE |
