Description
ASME 150L - 350 MAX working pressure, Pneumatic PSIG 385

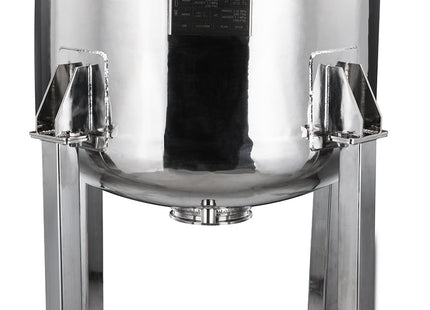

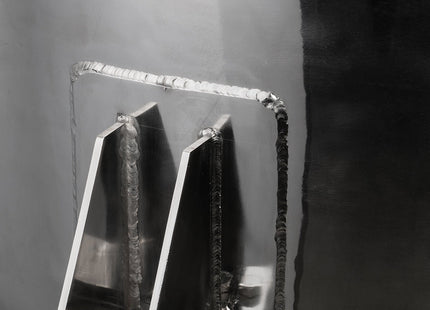

This is a custom manufactured made ASME Certified 150L Jacketed Solvent Tank with ASME Stamp and made out of 304 Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes bare with no fittings and will hold 150LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system. This unit also has welded lift points on the top of the tank.
| Specifications |
| Material |
304 Stainless Steel |
| Certification: |
ASME
|
| MAWP @ 100°C / 212°F: |
| Inside |
350 PSI / 2.42 MPa |
| Jacket |
150 PSI / 1.1 MPa |
| MDMT |
-40°C / -40°F |
| MIN TEMP |
-20°F at 350PSI |
| Butane Capacity |
150LBS |

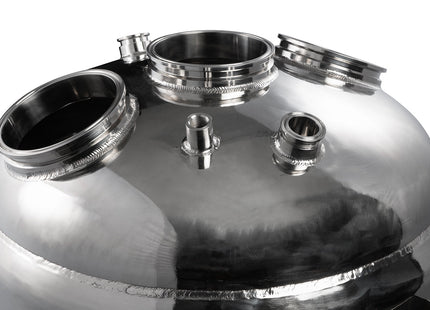

| Connection Sizes: |
(3) 6" Tri-Clamp |
| (2) 1.5" Tri-Clamp |
| (2) 1/2" FNPT |
| Weight |
108LBS |
| Outer Dimensions: |
44.5" Tall |
| 32.5" W x 32.5" L |
**This Item will ship Via FREIGHT ONLY.
