Ai Stainless Steel Cold Trap Insert For T40-UL Gen 2
Protecting vacuum systems from unwanted constituents is essential to preserving the integrity and performance of any vacuum system. Utilizing a vacuum/cold trap in between vacuum pump systems and process systems is vital for ensuring the health of your vacuum system. That’s why we’ve created this high-efficiency, stainless steel vacuum/cold trap for a multitude of applications.
Features
- NW/KF25 Inlet and Outlet Connections
- Tier Mesh Plates – for efficient vapor trapping and reflux retention
- Widened Internal Vapor Outlet – to prevent clogging/freezing inside vapor inlet tube
- Silicone Insulating Ring – for insulation and tight fit into mechanical traps
- Custom fit – for older generation T40
- Comes with silicone insulation ring that fits directly into the top portion of the reservoir of T40 & T80 cold traps

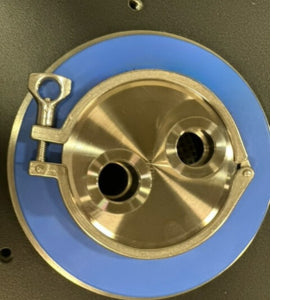

NW/KF25 inlet and outlet flange ports.
This stainless mechanical cold trap insert features NW/KF25 inlet and outlet flange ports for tight, simple seals to vacuum pumps and process systems, along with a high-vacuum flange lid to seal the body and lid portions of the trap.

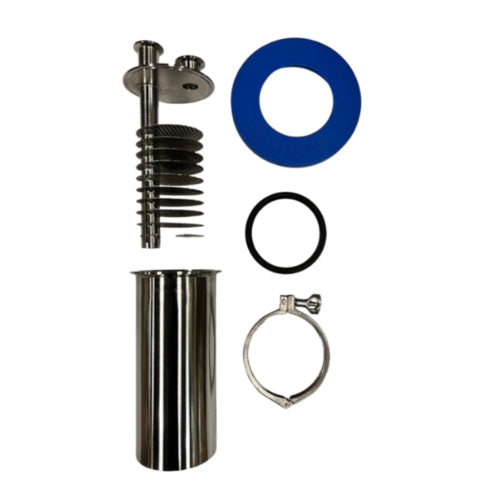

Six stainless steel mesh plates.
Internally, the trap features 10 stainless steel mesh plates that are stacked inside to provide sufficient surface area to not only trap vapors that enter the trap but to also provide reflux retention of vapors inside of the trap throughout high-vacuum applications.
Fluid-filled channel inside.
Additionally, there is a fluid-filled channel inside of the trap that provides additional internal cooling and surface area, as well as a channel for thermocouples inside of mechanical cold traps.
Optional silicone insulating ring.
The silicone insulating ring (sold separately) creates a tight seal and insulation between the mechanical traps and stainless steel insert. The stainless steel mechanical cold trap insert may also be used in a dry ice or liquid nitrogen bath.
NOTE: Blue silicone seal/insulation ring included in this purchase.

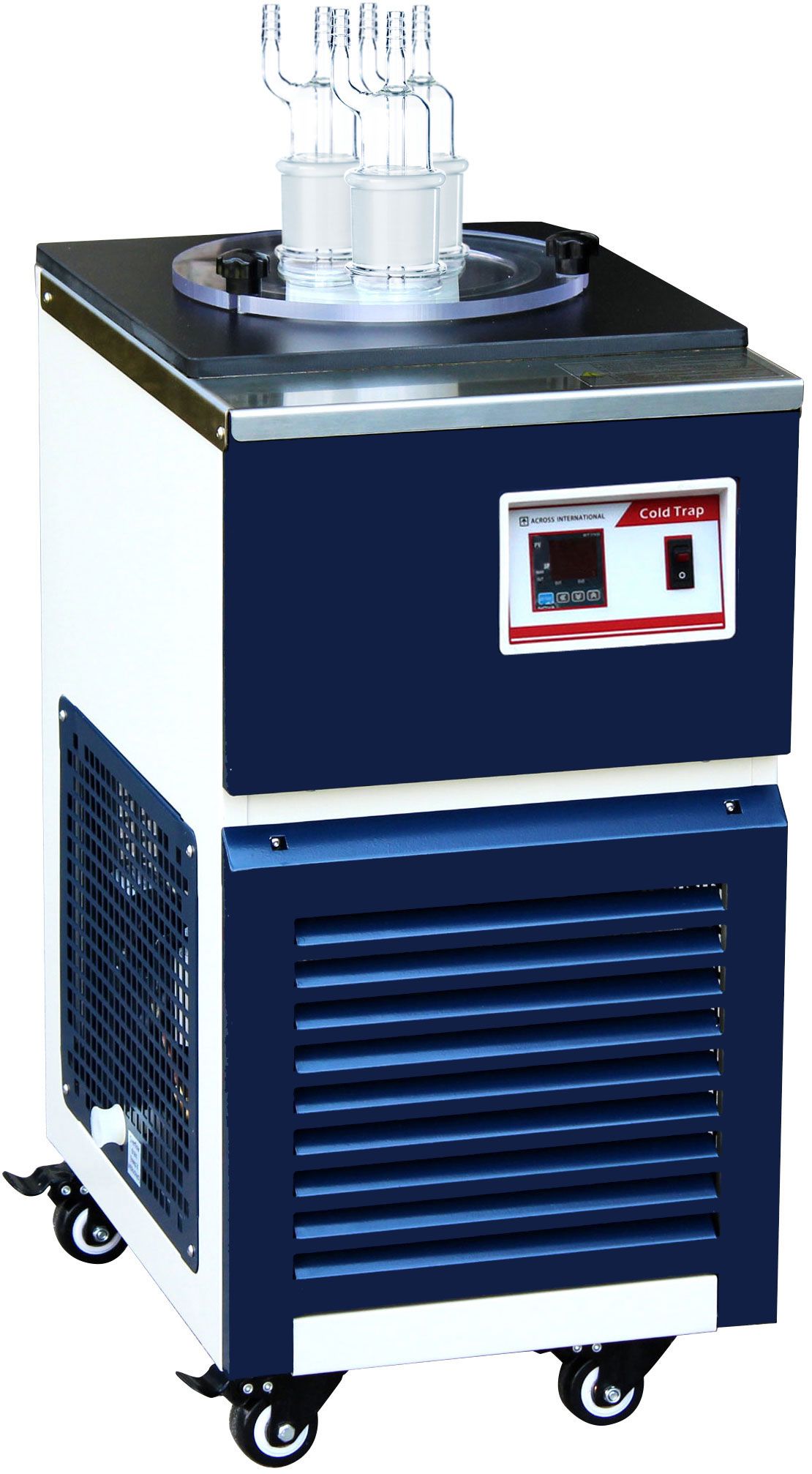

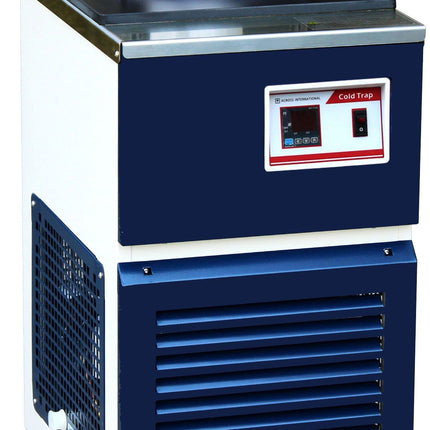

The cold traps are for T40-UL models only. NOT COMPATIBLE WITH T40 (T40) or T80 (gen 1)
