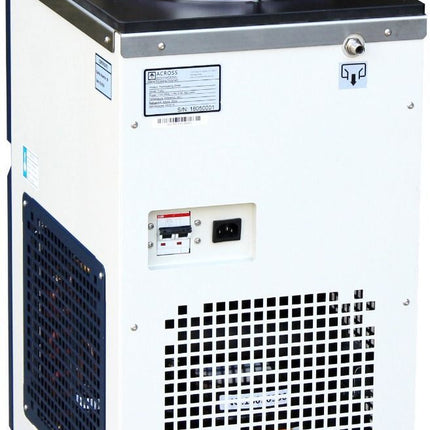

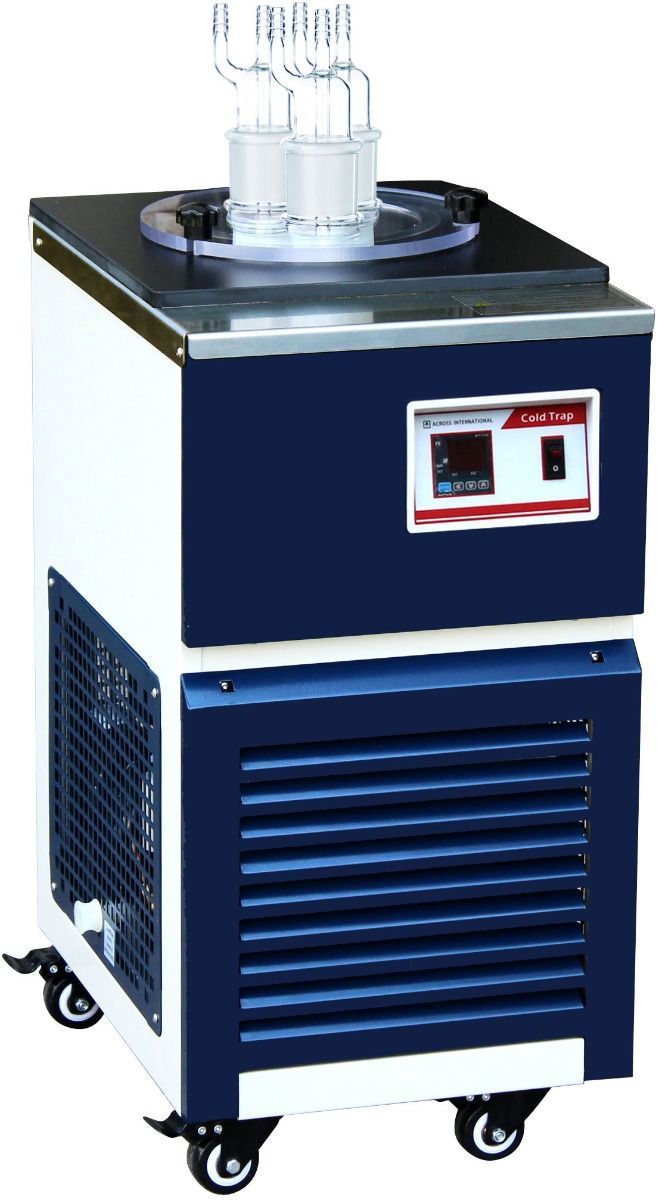

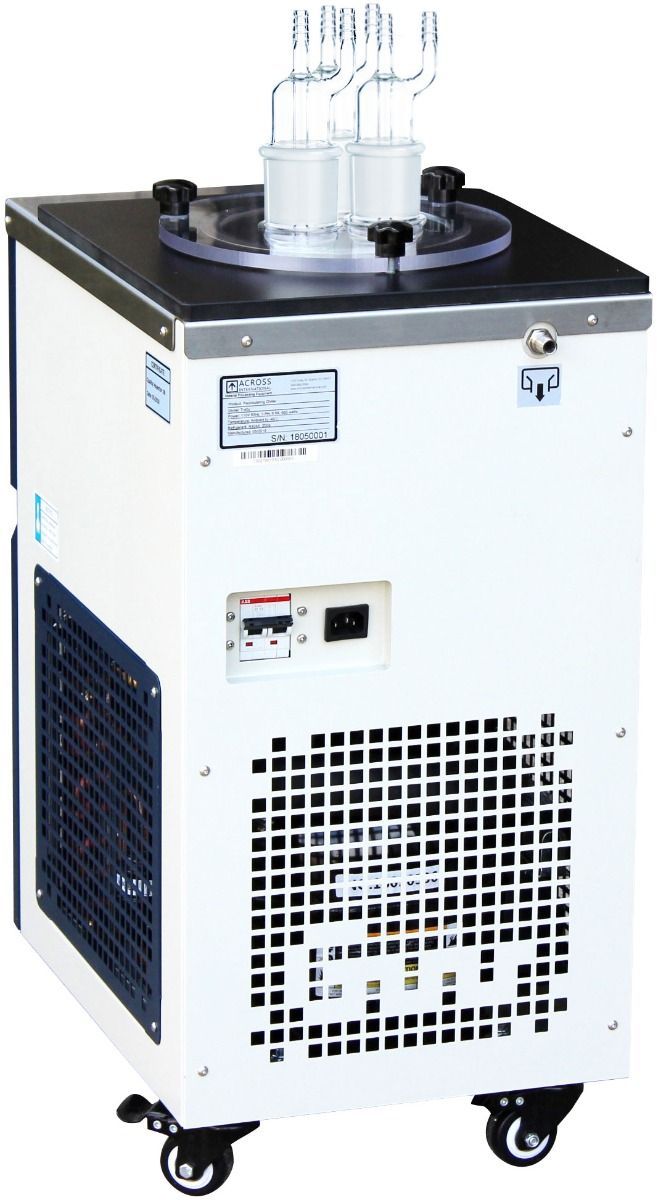

Ai -40°C 1.5L Capacity Cold Trap

Description

The Ai 2nd Gen -40C/F T40 cold traps now all ETL certified. They have a much smaller footprint, but at the same time, offering you the same cooling power, 1.5X reservoir and 1.6X trap capacity. New upward hose barb ports provide you safer and easier vacuum tubing connection and removal.

Ai -40°C 1.5L Capacity Cold Trap

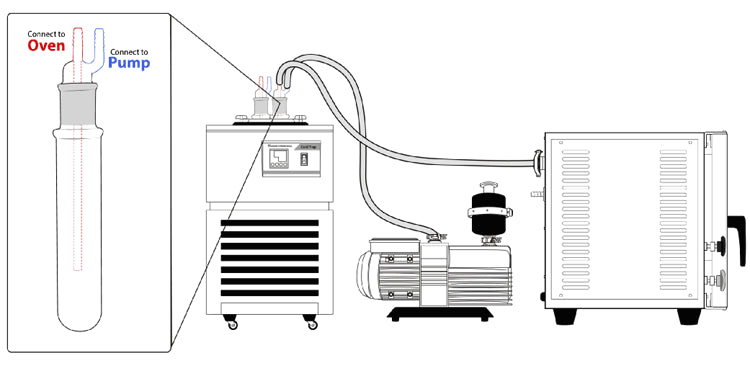

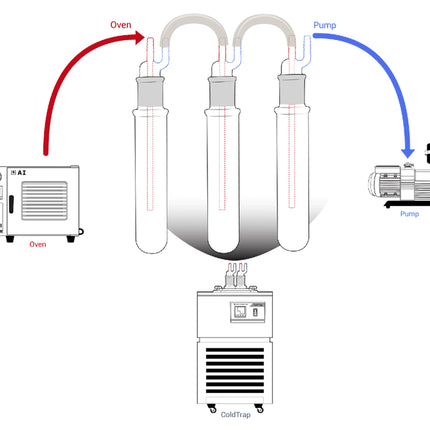

In vacuum applications, a cold trap is a device that condenses all vapors except the permanent gases into a liquid or solid. The most common objective is to prevent vapors being evacuated from an experiment from entering a vacuum pump where they would condense and contaminate it. Particularly large cold traps are necessary when removing large amounts of liquid as in freeze drying.

Pumps that use oil either as their working fluid (diffusion pumps), or as their lubricant (mechanical rotary pumps), are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the cavity.

Care should be taken when using a cold trap not to condense liquid oxygen (a light blue liquid) into the cold trap. Liquid oxygen is potentially explosive, and this is especially true if the trap has been used to trap solvent. Liquid oxygen can be condensed into a cold trap if a pump has sucked air through the trap when the trap is very cold.

Ai UL/CSA certified T40-UL -40°C/°F cold trap features

  • ETL tested to UL and CSA standards
  • 1.5X more reservoir and 1.6X more trap capacity compare to its predecessor
  • No dry ice or liquid nitrogen needed
  • All steel housing for durability
  • Small footprint, built-in swivel casters for mobility
  • Plug and play, no assembly required

Ai -40°C 1.5L Capacity Cold Trap

Product form

SKU: T40-UL.110.N.Glass

$5,514.80

    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

    Description

    The Ai 2nd Gen -40C/F T40 cold traps now all ETL certified. They have a much smaller footprint, but at the same time, offering you the same cooling power, 1.5X reservoir and 1.6X trap capacity. New upward hose barb ports provide you safer and easier vacuum tubing connection and removal.

    Ai -40°C 1.5L Capacity Cold Trap



    In vacuum applications, a cold trap is a device that condenses all vapors except the permanent gases into a liquid or solid. The most common objective is to prevent vapors being evacuated from an experiment from entering a vacuum pump where they would condense and contaminate it. Particularly large cold traps are necessary when removing large amounts of liquid as in freeze drying.

    Pumps that use oil either as their working fluid (diffusion pumps), or as their lubricant (mechanical rotary pumps), are often the sources of contamination in vacuum systems. Placing a cold trap at the mouth of such a pump greatly lowers the risk that oil vapors will back stream into the cavity.

    Care should be taken when using a cold trap not to condense liquid oxygen (a light blue liquid) into the cold trap. Liquid oxygen is potentially explosive, and this is especially true if the trap has been used to trap solvent. Liquid oxygen can be condensed into a cold trap if a pump has sucked air through the trap when the trap is very cold.

    Ai UL/CSA certified T40-UL -40°C/°F cold trap features

    • ETL tested to UL and CSA standards
    • 1.5X more reservoir and 1.6X more trap capacity compare to its predecessor
    • No dry ice or liquid nitrogen needed
    • All steel housing for durability
    • Small footprint, built-in swivel casters for mobility
    • Plug and play, no assembly required
