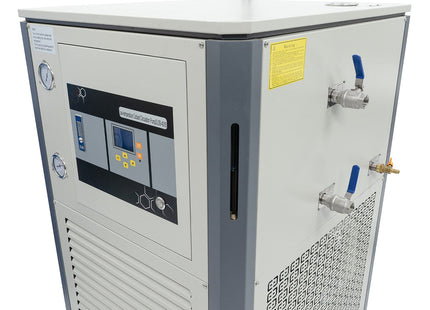

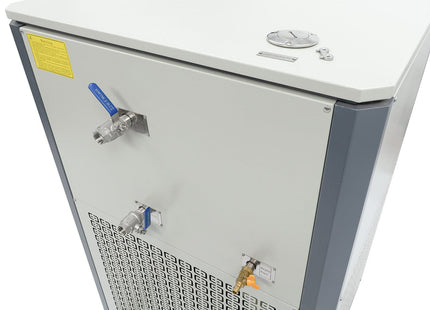

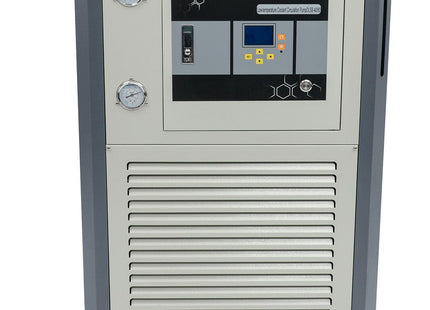

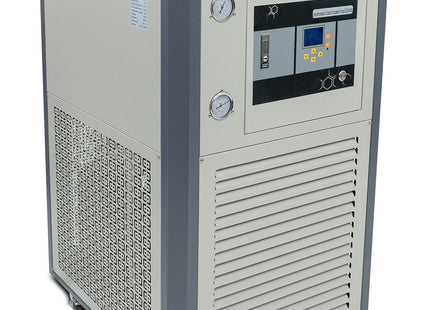

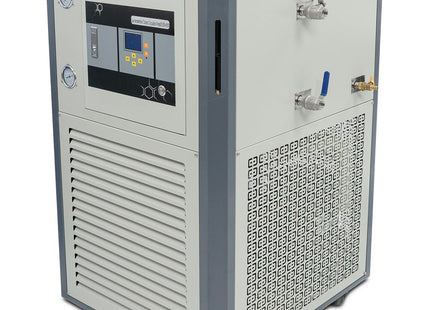

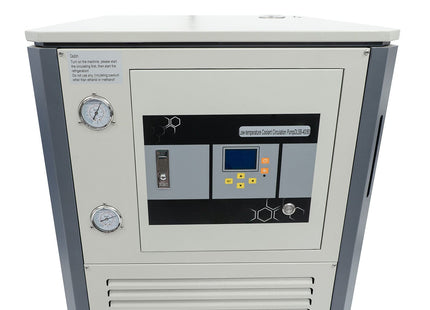

BVV -80C Chiller - 220v/60hz
Description
BVV -80C Chiller - 220v/60hz
This recirculating chiller is great for low temperature applications. With the a powerful pump it is able to circulate fluid while at -80°C. The chiller includes valves for the inlet and outlet port with 3/4" FNPT connections. The chiller also includes two barbs to adapt to 5/8" tubing, along with 2M of insulated silicone tubing.
| Technical Data | 3 Phase | Single Phase |
|---|---|---|
| Reservoir: | 10L | 10L |
| Flow: | 35L/min | 35L/min |
| Lift: | 12m | 12m |
| Refrigerant: | R404/R23 | R404/R23 |
| Low Temperature: | -80℃ | -80℃ |
| Cooling capacity: | 8048~1260W | 7665~1200W |
| @30°C | 8048W | 7665W |
| @0°C | 6021W | 5735W |
| @-40°C | 4326W | 4120W |
| @-80°C | 1260W | 1200W |
| Max. Input Current: | 17 amps | 24 amps |
| Power supply: | 220V/60Hz/3Φ | 220V/60Hz/1Φ |
|
Circulator |
Low-temperature Coolant Circulation Pump |
Low-temperature Coolant Circulation Pump |
BVV -80C Chiller - 220v/60hz
SKU: BVV-80C
$18,066.89
You will earn 18,066.89 points for this purchase.✔ 1 Year Limited Warranty
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
