8" Tri-Clamp Dewaxer Column
Description
8" Tri-Clamp/ Tri Clover Dewaxing Columns

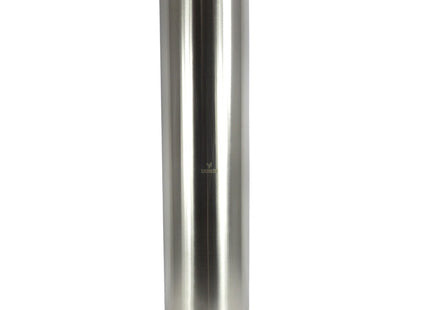

This is a 8" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.
**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD
Sizes Available:
- 8" x 36" Tri-clamp Dewaxer Column
- 8" x 48" Tri-clamp Dewaxer Column
Specifications:
| Tri-Clamp Size | 8" |
| Material | 304 Stainless Steel |
| Standard | 3A High Polish |
| Sleeve OD | 10.000" |
| Spool ID | 7.782" |
| Spool OD | 8.000" |
| Flange OD | 8.570" |
| Bead Center | 8.150" |
| Drain Port | 1/4"-18 FNPT (Drain Plug Included) |
- OD = Outer Dimension
- ID = Inner Dimension
Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
8" Tri-Clamp Dewaxer Column
SKU: 800X36DWP
$637.47
You will earn 637.47 points for this purchase.✔ 1 Year Limited Warranty
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
