5L Digital Heating and Stirring Mantle
Description
5L Digital Heating and Stirring Mantle

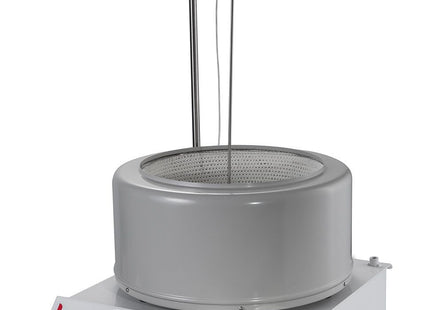

Digital Heating and Stirring Mantles give the operator the most precise temperatures and readouts during distillations. These mantles autotune to specific user input to provide consistent results. Each mantle is equipped with large digital display that will give you readouts for both set temperature, actual temperature, and stirring speed. Each mantle also comes with a vertical brace bar and boss head as well as a temperature probe which plugs directly into the mantle. For first time use, the mantle should have an initial burn out done. This will burn off any residual oils used in the production of the insulation rope.
- The unit's max internal temperature cannot exceed 380C. The recommended max set temperature should not exceed 250C
Features:
- PID Temperature control
- Brushless magnetic magnetic stirrer motor
- Temperature protector
Specifications:
| Capacity: | 5L (5000mL) |
| Power Supply: | 110V 60Hz |
| Adjustable Rotation Speed: | 50-1800 RPM |
| Motor Power: | 40W, DC14-24V |
| Heating Power | 180-2200W |
| Temperature Control Accuracy: | +/- 1C |
| Intelligent Temperature Control: | Yes |
| Temperature Range: | RT+10-380C |
| Insulation Material: | Alkali-free Glass Fiber, temperature resistant up to 450C |
| Shipping Dimensions: | 20 x 15 x 14 in. |
| Weight: | 12 lbs |
5L Digital Heating and Stirring Mantle
SKU: 5LHM-110V-B
$1,167.24
You will earn 1,167.24 points for this purchase.✔ 90 Day Limited Warranty
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
