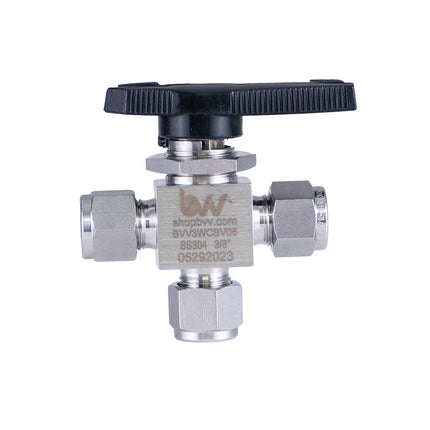

BVV 3-Way Compression Ball Valve

Description

BVV manually operated two-way ball valves provide quick ¼ turn directional flow control of fluids in instrumentation and process systems. This valve body had 3 connections, connection 1 and 3 (pictured left and right) can be switched to be in use with connection 2. If the handle is left in between connections 1 and 3, there will be no flow through the valve.


Features:

  • Directional handle indicates flow direction
  • Panel Mountable
  • 90-degree actuation (180 degree to switch outlet ports)
  • Straight through flow path
  • Micro-finished ball provides positive seal
  • Free-floating ball design provides compensation for seat wear for repetitive sealing
  • Blow-out proof ball & stem

BVV™ Compression Ball Valve - Data Sheet295 Pdf Logo Illustrations & Clip Art - iStock

Specifications
Body Material 316L Stainless Steel
Pressure Rating @ 100F 1000 PSIG
Connection Type 1/3 Double Ferrule Tube Fitting
Connection Size 1/3 Specified by User
Connection Type 2 Double Ferrule Tube Fitting
Connection Size 2 Specified by User
Handle Type Nylon-Stainless Steel Insert
Handle Color Black
Packing Material PTFE





BVV 3-Way Compression Ball Valve

Product form

SKU: BVV3WCBV04

$175.06

    • Guaranteed secure & safe checkout.

      shop pay
    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    BVV manually operated two-way ball valves provide quick ¼ turn directional flow control of fluids in instrumentation and process systems. This valve body had 3 connections, connection 1 and 3 (pictured left and right) can be switched to be in use with connection 2. If the handle is left in between connections 1 and 3, there will be no flow through the valve.


    Features:

    • Directional handle indicates flow direction
    • Panel Mountable
    • 90-degree actuation (180 degree to switch outlet ports)
    • Straight through flow path
    • Micro-finished ball provides positive seal
    • Free-floating ball design provides compensation for seat wear for repetitive sealing
    • Blow-out proof ball & stem

    BVV™ Compression Ball Valve - Data Sheet295 Pdf Logo Illustrations & Clip Art - iStock

    Specifications
    Body Material 316L Stainless Steel
    Pressure Rating @ 100F 1000 PSIG
    Connection Type 1/3 Double Ferrule Tube Fitting
    Connection Size 1/3 Specified by User
    Connection Type 2 Double Ferrule Tube Fitting
    Connection Size 2 Specified by User
    Handle Type Nylon-Stainless Steel Insert
    Handle Color Black
    Packing Material PTFE
