Name: 3 Way Ball Valve - Fractional Tube Fitting
Brand: SSP Corporation
SKU: 43GXD4-316
Price: 111.21 CAD
Availability: InStock

3 Way Ball Valve - Fractional Tube Fitting

SSP Corporation
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

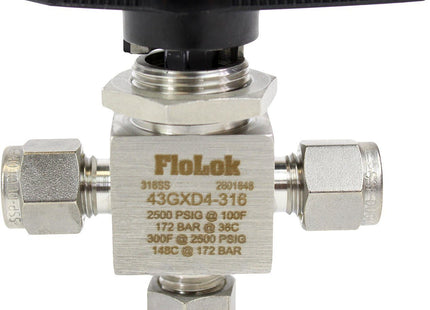

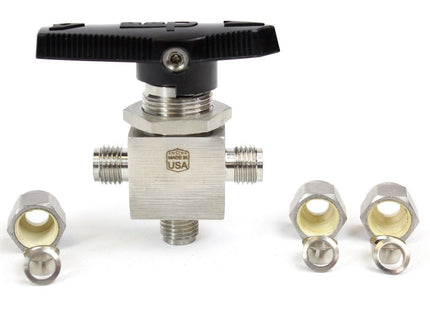

SSP - 3 Way Ball Valve - Fractional Tube Fitting

SSP Instrumentation Flolok® manually operated three-way ball valves accept media through the bottom port and allow selection of flow through a selected port.

Features:

Directional handle indicates flow direction
Panel Mountable
180-degree actuation
Directional flow path
Micro-finished ball provides positive seal
Free-floating ball design provides compensation for seat wear for repetitive sealing
Blow-out proof ball & stem
Standard Product Testing - Every ball valve is assembled and tested @ 1000 psi (68.9 bar) with Nitrogen

Specifications
Body Material	316 Stainless Steel
Pressure Rating @ 100F	3000 PSIG
@37C	208 BAR
@300F	2500 PSIG
@148C	172 BAR
Connection Type 1	Duolok Tube Fitting
Connection Size 1	Specified by User
Connection Type 2	Duolok Tube Fitting
Connection Size 2	Specified by User
Connection Type 3	Duolok Tube Fitting
Connection Size 3	Specified by User
Handle Type	Nylon-Stainless Steel Insert
Handle Color	Black
Packing Material	PTFE

SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!

3 Way Ball Valve - Fractional Tube Fitting

SSP Corporation
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Size

1/4-inch
3/8-inch

SKU: 43GXD4-316

$208.51 $111.21

Guaranteed secure & safe checkout.

Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154

Financing Available

Use one of partners to pay over time.

Description

SSP - 3 Way Ball Valve - Fractional Tube Fitting

SSP Instrumentation Flolok® manually operated three-way ball valves accept media through the bottom port and allow selection of flow through a selected port.

Features:

Directional handle indicates flow direction
Panel Mountable
180-degree actuation
Directional flow path
Micro-finished ball provides positive seal
Free-floating ball design provides compensation for seat wear for repetitive sealing
Blow-out proof ball & stem
Standard Product Testing - Every ball valve is assembled and tested @ 1000 psi (68.9 bar) with Nitrogen

Specifications
Body Material	316 Stainless Steel
Pressure Rating @ 100F	3000 PSIG
@37C	208 BAR
@300F	2500 PSIG
@148C	172 BAR
Connection Type 1	Duolok Tube Fitting
Connection Size 1	Specified by User
Connection Type 2	Duolok Tube Fitting
Connection Size 2	Specified by User
Connection Type 3	Duolok Tube Fitting
Connection Size 3	Specified by User
Handle Type	Nylon-Stainless Steel Insert
Handle Color	Black
Packing Material	PTFE

SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
