3 Way Ball Valve - Female NPT
3 Way Ball Valve - Female NPT
- VendorSSP Corporation
Description

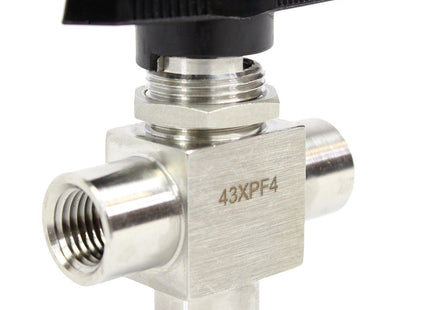

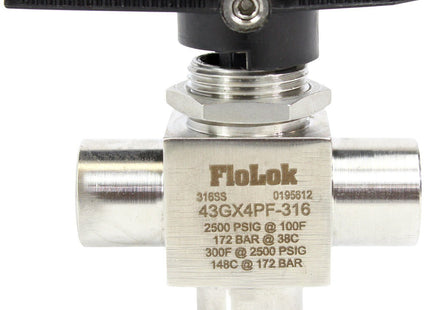

SSP - 3 Way Ball Valve - Female NPT
SSP Instrumentation Flolok® manually operated three-way ball valves accept media through the bottom port and allow selection of flow through a selected port.
Features:
- Directional handle indicates flow direction
- Panel Mountable
- 180-degree actuation
- Directional flow path
- Micro-finished ball provides positive seal
- Free-floating ball design provides compensation for seat wear for repetitive sealing
- Blow-out proof ball & stem
- Standard Product Testing - Every ball valve is assembled and tested @ 1000 psi (68.9 bar) with Nitrogen
| Specifications | |
|---|---|
| Body Material | 316 Stainless Steel |
| Pressure Rating @ 100F | 3000 PSIG |
| @37C | 208 BAR |
| @300F | 2500 PSIG |
| @148C | 172 BAR |
| Connection Type 1 | Female NPT |
| Connection Size 1 | Specified by User |
| Connection Type 2 | Female NPT |
| Connection Size 2 | Specified by User |
| Connection Type 3 | Female NPT |
| Connection Size 3 | Specified by User |
SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
3 Way Ball Valve - Female NPT
- VendorSSP Corporation
SKU: 43GX4PF-316
$198.86$156.25
You will earn 156.25 points for this purchase.✔ 30 Day Limited Warranty
✔ Made in the USA
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
