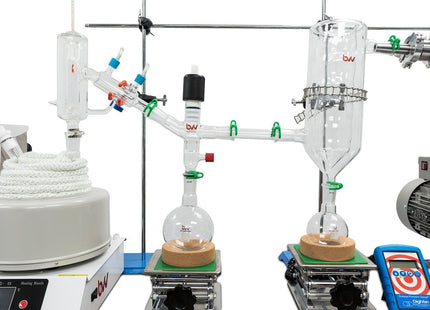

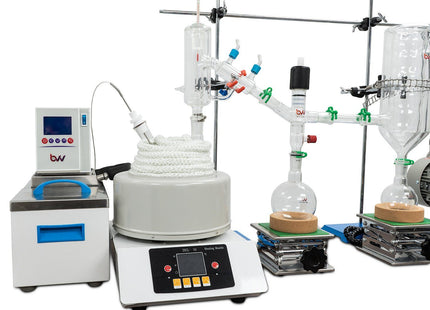

2L Full Bore Short Path Distillation Turnkey Kit with P2 Distillation Head
Description
2L Full Bore Short Path Distillation Turnkey Kit with P2 Distillation Head
This unit carries a 2-day lead time
The 2L Full Bore Short Path Distillation Turnkey Kit with P2 Distillation Head is a great setup for smaller scale processors that want a budget friendly system without sacrificing quality on the main components that make a short path great. We understand that as an operator our customers want to be able to start their system and operate in ideal conditions run after run. That is why we paired a full-bore setup with a 14.1CFM pump that will assure the lowest vacuum depth will be pulled every time. Main components such as the distillation head, vacuum valve adapter, and cold trap are all American blown glass. These components allow us to present this system that will repeat in performance time after time.
For a in depth analysis of this system please view the following videos. Here you will see the system setup, component explanation, and even see it perform in a first and second distillation pass. These runs were all performed in our lab and the data was used to help fine tune the system.
- The unit's max internal temperature cannot exceed 380C. The recommended max set temperature should not exceed 250C
Video 1 - Setup and Component Explanation
Video 3 - Fist pass Distillation
Video 4 - Second Pass Distillation
| The 2L Full Bore Short Path Distillation Turnkey Kit with P2 Distillation Head Includes: | |
|---|---|
| 1 | First Pass Distillation Operating Procedure |
| 1 | P2 Distillation Kit |
| 1 | 2L Double Neck Boiling Flask |
| 1 | Full Bore Vacuum Valve Adapter |
| 1 | BVV MP7H Heater |
| 1 | 2L Heating Mantle |
| 1 | Ribbed Glass Cold Trap |
| 1 | Bullseye Precision Vacuum Gauge |

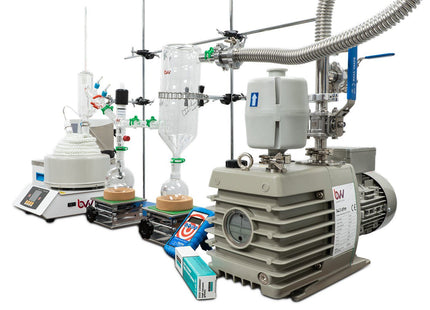

| 1 | BVV Pro Series 14.1CFM Rotary Vane Pump (Comes filled with oil. Recommend purchasing additional Ultra 19 Vacuum Pump Oil. SKU: INLAND19-ULTRS-1G) |
| 1 | Oil Mist Filter Trap for Rotary Vane Pump |

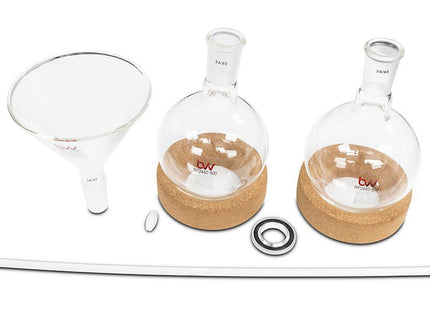

| 1 | 24/40 250ml Single Neck Round Bottom Flask |
| 3 | 24/40 500ml Single Neck Round Bottom Flask |
| 1 | 24/40 Glass Funnel |
| 1 | Vacuum Manifold for Rotary Vane Pump |
| 1 | 1 Meter Bellow Hose |
| 1 | PTFE Magnetic Stirring Bar Retriever |
| 1 | 24/40 Metal Keck Clip |
| 6 | 24/40 Plastic Keck Clips |
| 3 | 250-500ml Cork Stands |
| 2 | Chain Clamps |
| 1 | Boss Head with 3 Finger Clamp |
| 1 | BVV Lab Stand |
| 10 | Fiber Glass Insulation Rope |
| 1 | Dow Corning High Vacuum Grease |
| 1 | 10/30 Non-Mercury Glass Thermometers |
| 1 | 24/40 – 10/30 Glass Adapter Bushing |
| 1 | 24/40 – 1/8” Thermometer Adapter |
| 1 | 24/40 Straight Adapter |
| 2 | 6”x6” Scissor Jack |
| 3 | 36” Threaded Lab Stand Rod |
| 2 | Gl14 – 8mm Barb |
| 6 | ¼” Silicone Tubing |
| 2 | PTFE Magnetic Stirring Bar |
| 4 | Hose Clamp with Butterfly Key |
***Note: This entire setup will ship via motor freight.***
***Note: All units are inspected for broken glass or parts before unit is shipped. If unit arrives damaged or glass is broken (this does not include minor imperfections or scuffs in glassware), Customer MUST contact BVV™ within 3 days of delivery to file a claim and receive a replacement part. If customer DOES NOT contact BVV™ within 3 days of delivery responsibility for replacement parts falls on the customer and they must pay for replacement pieces.***
***Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.***
2L Full Bore Short Path Distillation Turnkey Kit with P2 Distillation Head
SKU: 2LFBTK-14.1
$10,640.45
You will earn 10,640.45 points for this purchase.- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
