Description

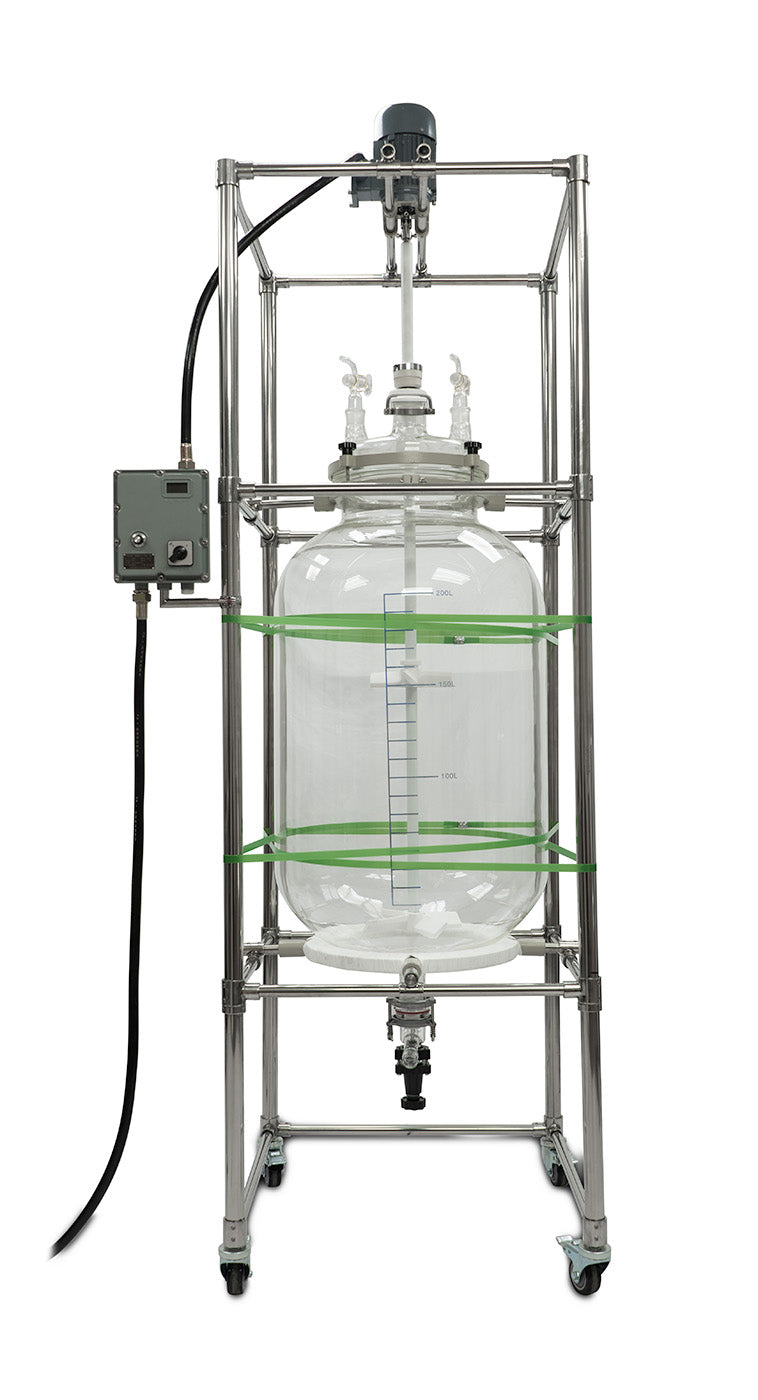

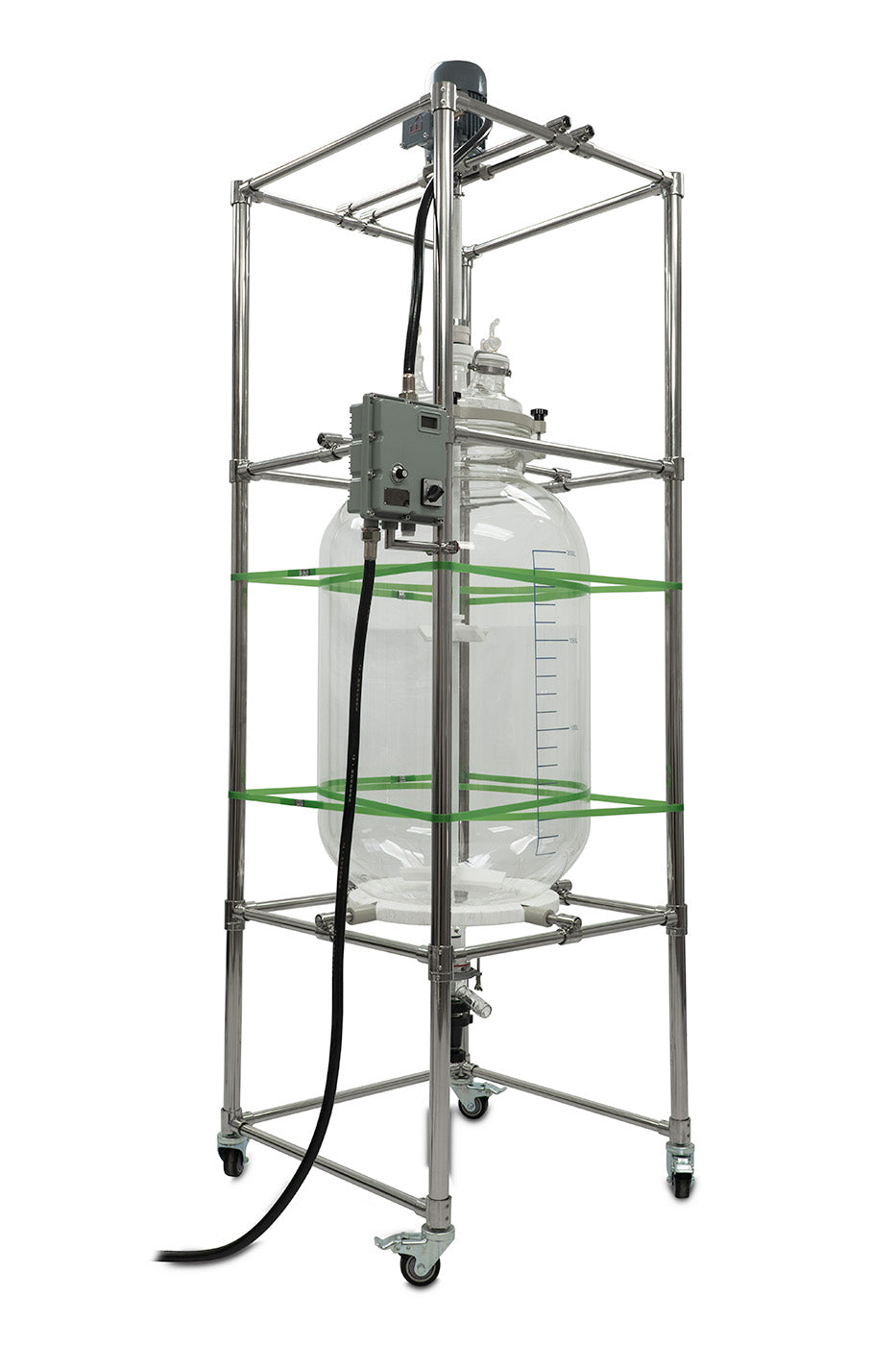

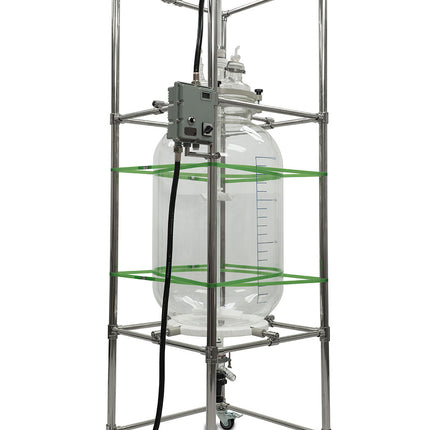

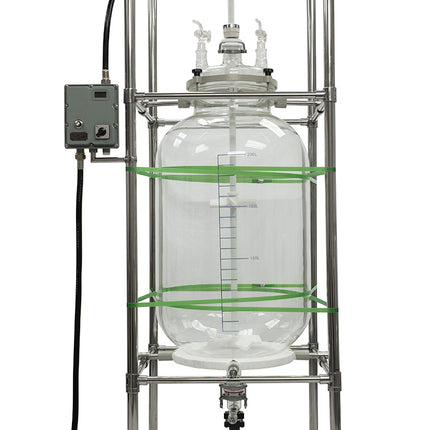

200L Non-Jacketed Glass Reactor
The non jacketed glass reactor is great for mixing different compounds that require an explosion proof environment. There are two valves on top with 1/2" barbed connections that can be used to pull liquids in with assistance from vacuum pump, and also a wide mouth port that can be opened to input liquid or solid materials such as catalysts.
The drain port is a 1.375" barb and has a 15" clearance above the ground.
The motor controller can be mounted in multiple locations on the frame, 3 feet of flexible explosion proof conduit are included with wiring. The conduit should be wired directly to an explosion proof junction box to keep everything sealed.
Electrical requirements: 110VAC / 370w
Overall dimensions: 29" x 29" x 98"
