2" Tri-Clamp Dewaxer Columns
Description

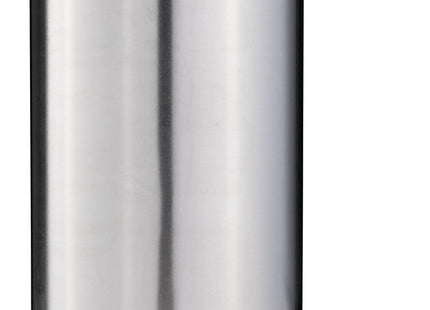

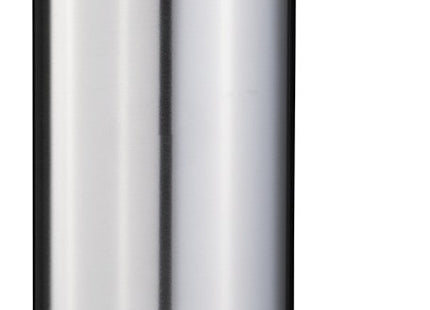

2" Tri-Clamp/ Tri Clover Dewaxing Columns
This is a 2" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.
**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD
Sizes Available:
- 2" x 12" Tri-clamp Dewaxer Column
- 2" x 18" Tri-clamp Dewaxer Column
- 2" x 24" Tri-clamp Dewaxer Column
Specifications:
| Tri-Clamp Size | 2" |
| Material | 304 Stainless Steel |
| Standard | 3A High Polish |
| Sleeve OD | 4.000" |
| Spool ID | 1.870" |
| Spool OD | 2.000" |
| Flange OD | 2.516" |
| Bead Center | 2.218" |
| Drain Port | 1/4"-18 FNPT (Drain Plug Included) |
- OD = Outer Dimension
- ID = Inner Dimension
Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
