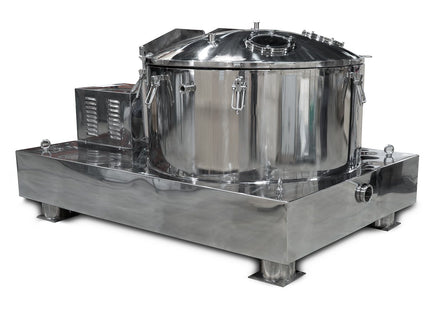

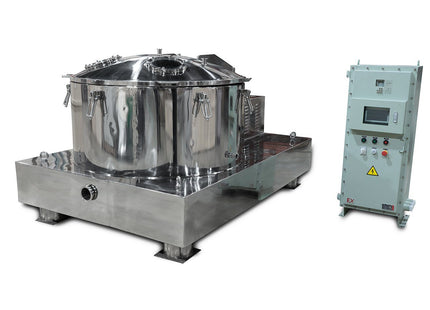

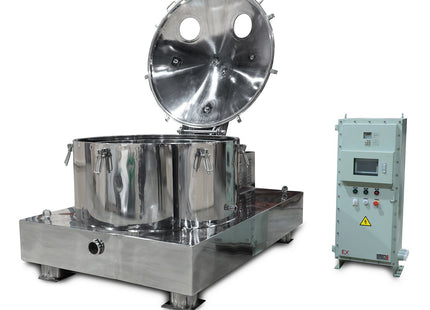

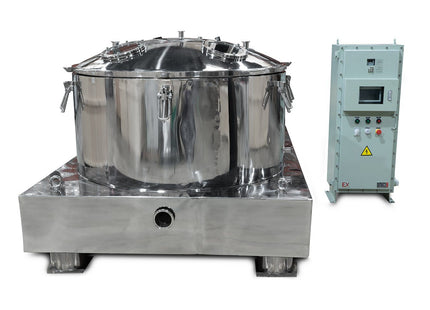

160L Jacketed Stainless Steel Centrifuge with Explosion Proof Motor and Siemens Controller - 55LB Max Capacity
Description
160L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller
Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift to lift it. It will also ship via freight only.
Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.
Key Features:
- Siemens Touch Screen Controller
- Explosion Proof Controller Housing and Motor
- Agitation and Spin Dry Modes
- Max 1200 RPM with Gradual Speed Stepping
- 643 Separation Factor
- Multiple Connection Ports/Sizes
- High Polish Stainless Steel Components
- Shock absorbing legs

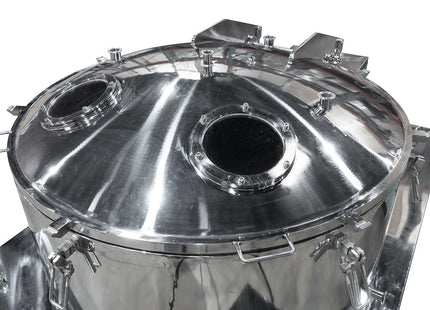

- Vacuum Jacket with Two 1" Tri-Clamp Fittings
- Pre-wired and Tested for Easy Installation
| Specifications | |
|---|---|
| Capacity | 160L |

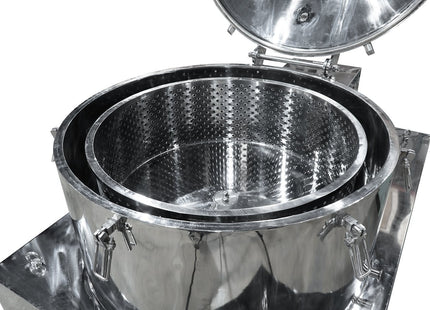

| Drum Dimensions | 31.5" (800mm) Diameter x 12.6" (320mm) Depth |
| Speed | 0-1200r/min |
| Weight | 3307lbs (1500KG) |
| Exterior Dimensions | 51.2" x 72.8" x 43.3" (1300 x 1850 x 1100mm) |
| Material |
304 Stainless Steel |
| Motor Power |
7.5KW Explosion Proof - 220v 60Hz 3 Phase |
160L Jacketed Stainless Steel Centrifuge with Explosion Proof Motor and Siemens Controller - 55LB Max Capacity
SKU: CF-160L-B
$46,122.46
You will earn 46,122.46 points for this purchase.✔ 1 Year Limited Warranty
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
