Description

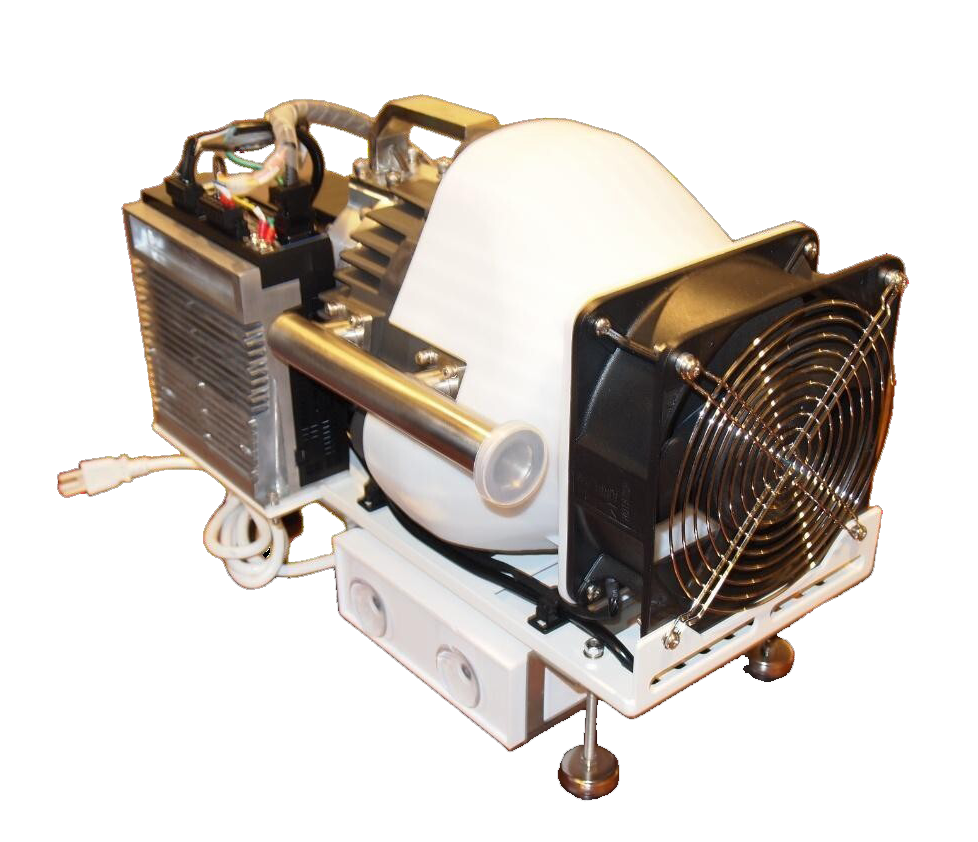

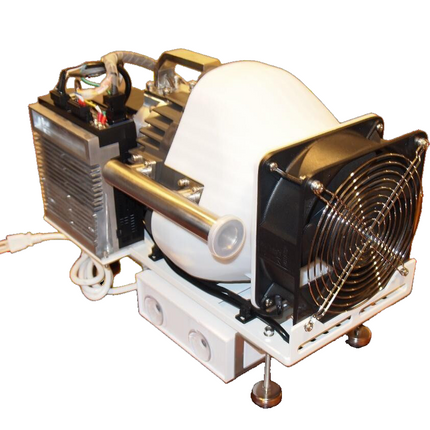

10.5CFM Dry Floating Scroll Vacuum Pump
Oil and Maintenance Free!

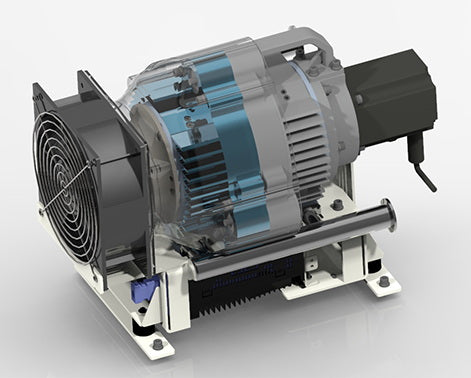

Introducing the SVF-E2-300P Vacuum Pump, equipped with cutting-edge patented floating scroll technology for unparalleled performance. This pump boasts a 10.5CFM (300 L/min) pump speed and an ultimate pressure of 23 Microns (≤ 0.03 mbar), making it a powerhouse in creating and maintaining vacuums. The 100% oil-free design ensures clean and efficient operation, while the brushless DC motor, with 400W motor power, provides reliability and longevity. With a compact size ideal for portable equipment, this vacuum pump offers unlimited vapor tolerance and a noise level as low as 55 dB(A) with its case. The SVF-E2-100 is maintenance-free, featuring a robust build with inlet/outlet connections in KF-25, air-cooled cooling system, and a wide ambient temperature range from -40ºC to 60ºC. Elevate your vacuum processes with this advanced, compact, and powerful solution.
Specifications
|
Model
|
SVF-E2-300P
|
|
Pump Speed
|
300 L/min
|
|
Ultimate Pressure
|
≤ 23 Micron
|
|
Motor Power
|
400 W
|
|
Installed Power
|
200 W
|
|
Motor Type
|
Brushless DC Motor
|
|
AC Voltage
(120V-240 adapter included)
|
120 – 240 VAC
|
|
Maximum Speed
|
2500RPM
|
|
Vapor Tolerance
|
Unlimited
|
|
Maximum Inlet Speed
|
Unlimited
|
|
Maximum Outlet Speed
|
1 barg
|
|
Noise Level
|
60 dB(A)
|
|
Weight
|
30 kg
|
|
Dimensions
|
469×270×260mm
|
|
Inlet/Outlet Connection
|
KF-25
|
|
Cooling System
|
Air – Cooled
|
|
Ambient Temperature
|
-40ºC to 60ºC
|
