1/2" Fractional Tube Fitting Hose
Description

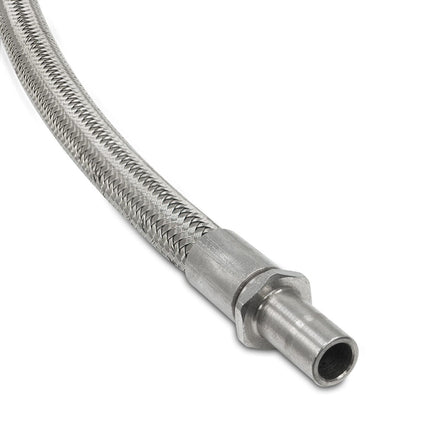

1/2" Fractional Tube Fitting Hose
These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have a tube stub on each end that fits a standard compression fitting.
***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used.
Specifications:
| Connection Type(s): | 1/2" Tube Stub |
| Liner Material | PTFE (Teflon) |
| Braid Material | 304 Stainless Steel |
| Swivel Material | 304 Stainless Steel |
| Temperature Rating | -94°F to 500°F (-70°C - 260°C) |
| Pressure Rating | 1500 PSI |
| Chemical Resistance | Excellent |
| Max Bend Radius | 5 1/2" |
1/2" Fractional Tube Fitting Hose
SKU: SSHTB2408
$67.31
