Home › Accessories › Light Mounted Standard Pressure Clamps

Light Mounted Standard Pressure Clamps

Name: light mounted sp clamp
Brand: BVV
SKU: LC200
Price: 50.0 USD
Availability: InStock

MFR: BVV

SKU: LC200

30 Day Limited Warranty

Fire Sale!

$50.00

You will earn 0 points for this purchase.

QTY

Price Match

Description - Click to Expand

LED Light Mounted Standard Pressure Clamps

(Batteries Not Included)

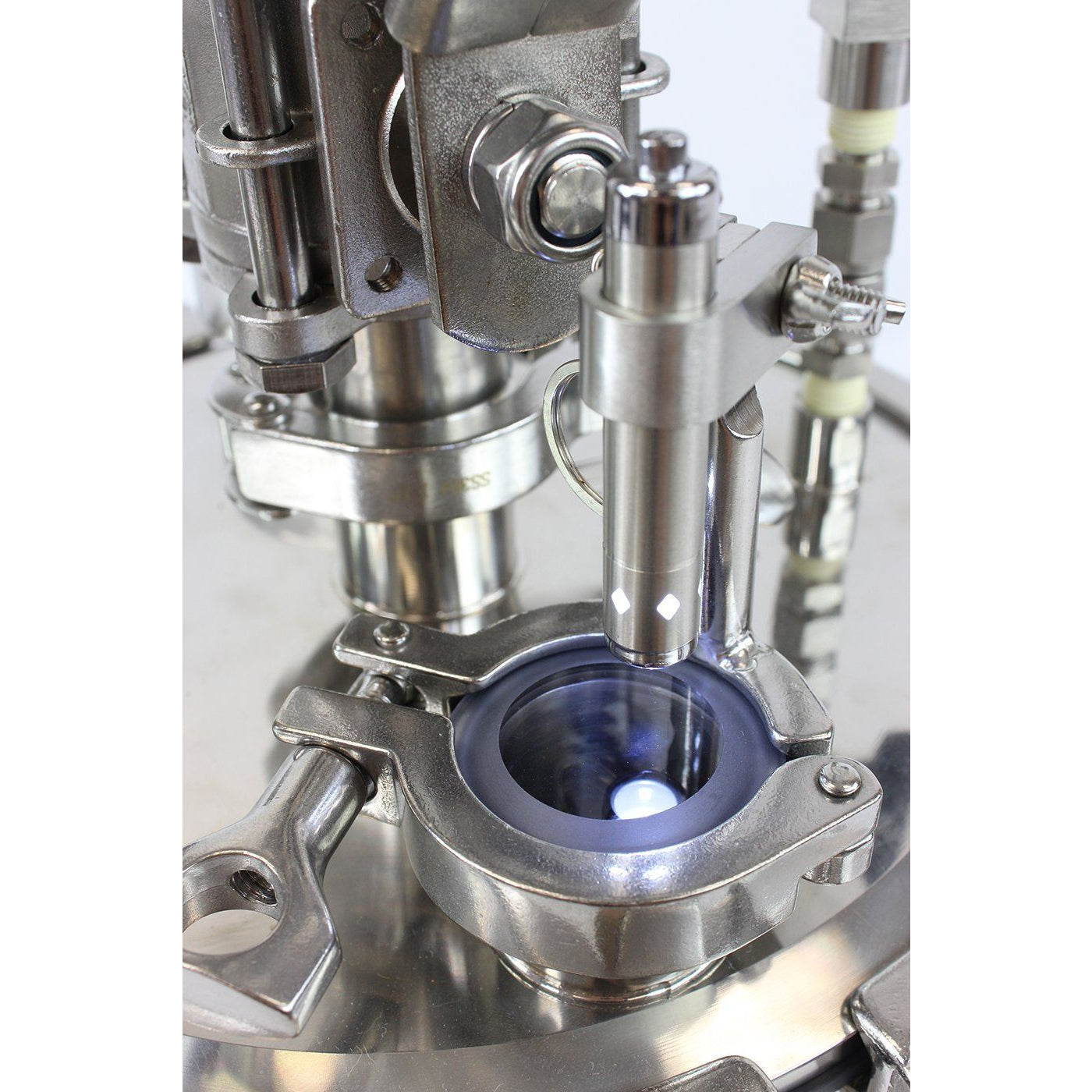

LED light mounted clamps offer the user convenience when trying to look into the base of their system because they don't have to fumble around and find a flashlight. These lights are directly mounted to the clamp and allow you to angle them directly into the sight glass on most of our extraction bases. Best Value Vacs recommends tightening all Standard Pressure Clamps (Non-High Pressure) to finger tight and then use either a screwdriver or wrench to tighten them 2 full turns. It is not recommended to over tighten the clamp and bottom it out as this will cause the gasket to be over-compressed and put too much tension on the clamp threads, which could cause it to fail.

Sizes Available:

1.5" Standard Pressure Clamp

2" Standard Pressure Clamp

3" Standard Pressure Clamp

Specifications:

Hinge Type: Double/Single

Material: 304 Stainless Steel

Connection Type: Tri-Clamp

Light Specifications: Battery Powered LED

Sizes	Maximum Pressure @70F (PSI)	Maximum Pressure @250F (PSI)
1.5"	500	250
2"	450	250
3"	350	150
