Manufacturer: BVV

BVV™ Pro Series 35.3CFM Corrosion Resistant Two Stage Vacuum Pump

SKU: BVVPS35.3-OMT
$5,775.00

Free Ground Shipping over $420


Flat Rate Shipping On Orders Under $420!


Some exclusions may apply.
The following are excluded from this offer:
  • Item(s) that are marked "Ships Separately" on the listing.
  • Hazardous Materials (Alcohols, Lab Chemicals, Butane/Propane, and Cleaning Solvents)
  • Item(s) that BVV™️️️️ recommends ship via Freight (LTL or FTL) due to size/fragility.
  • Large orders and/or combined order weight over 100lbs ship via Freight (LTL or FTL)
  • Free ground shipping only applies to the lower 48 states

You will earn 0 points for this purchase.


Price Match

BVV™ Pro Series  35.3CFM Corrosion Resistant Two Stage Vacuum Pump

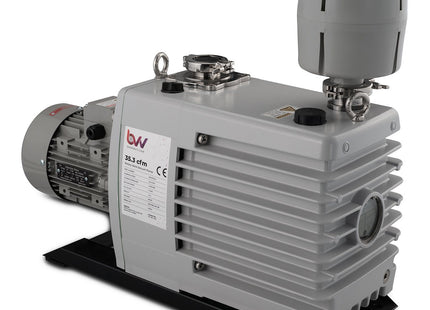

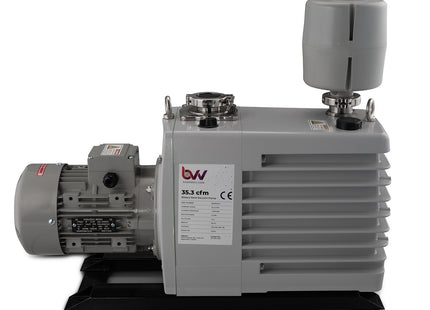

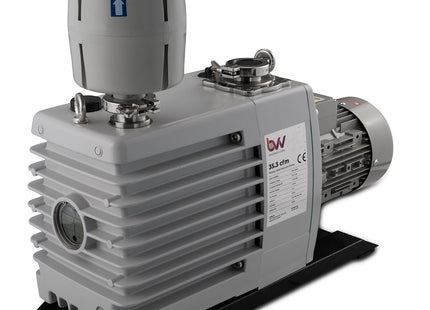

This is the BVV™ Brand 35.3CFM Two Stage Pro Series vacuum pump. The BVV™ Pro Series 35.3CFM will pull a vacuum down to 0.5 micron effortlessly. The pump is designed with corrosion resistance and long term continuous operation in mind. Comes standard with KF40 fittings, clamps, centering rings and oil mist exhaust filter which returns trapped oil back to the pump and allows for quieter operation. Adjustable gas ballast keeps moisture, solvent, and other contaminants from getting stuck in the pump.



Compare to Cacejen or Xeno brand rotary vane vacuum pumps.

Please Refer to these charts for vacuum specifications at altitude and conversions:





Specifications
Electrical Requirements: 220/380VAC 3 Phase - Note this pump does not come with a plug and must be wired manually.
Pumping Rate: 35.3CFM
Ultimate vacuum without gas ballast: 0.5 micron
Inlet/Outlet connection: KF40/NW40 Flange
Oil Volume: 4.5L/4.76 quarts
Working Temperature: 5C to 40C
Unit Weight: 68KG / 150lbs
Recommended oil: Ultragrade 19
CE Compliance: yes
Warranty 2 year limited warranty



Pump Warranty Information:

  • Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
  • If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
  • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
  • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
  • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
